Overview

ICL1240 (2T4R)

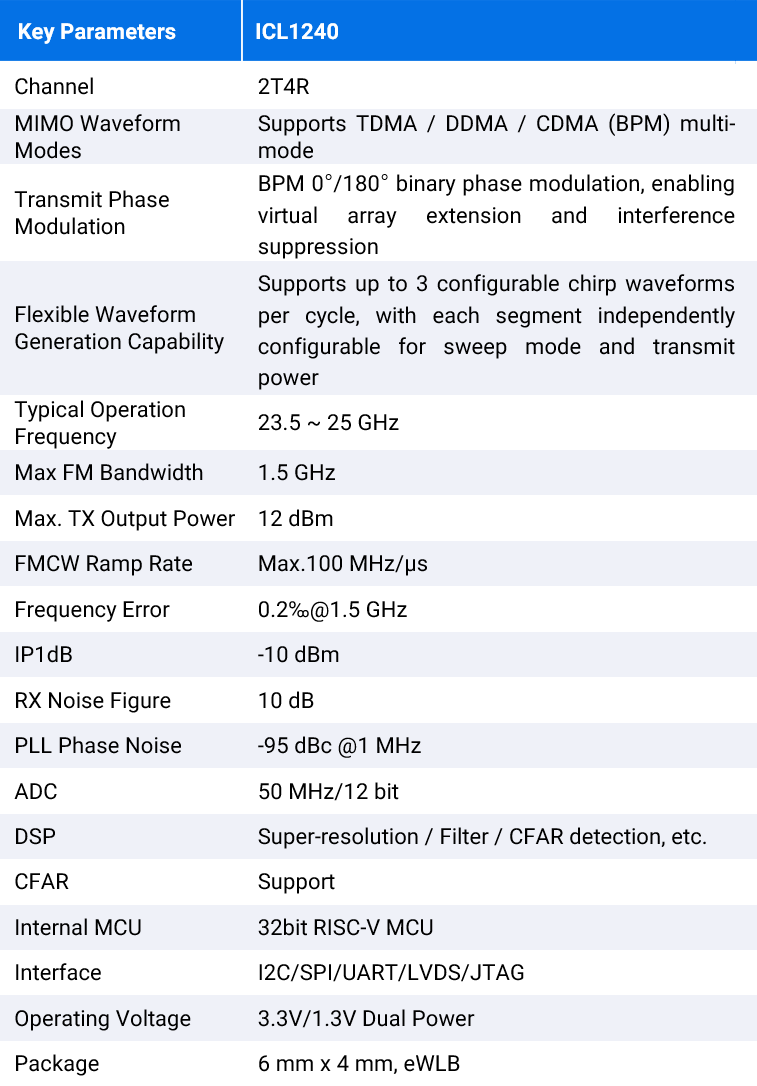

ICL1240 is a high-performance 24GHz 2T4R Millimeter-Wave Sensor SoC fabricated in CMOS technology, featuring highly integrated RF front-end, waveform generator, high-performance DSP, and 32-bit RISC-V MCU. It supports phase modulation, multiple configurable Chirp waveforms, and multi-chip cascade capability, enabling kilometer-scale outdoor target detection, high-precision indoor multi-person detection, and advanced point cloud sensing. With high integration, reduced external-component cost, and ease of development and deployment, ICL1240 provides an efficient chip-level solution for millimeter-wave sensing applications.



 Features

Single-chip SoC Solution: Integrates 2 Tx and 4 Rx channels, high-speed ADC, PLL, DSP, and 32bit RISC-V MCU, reducing external components and simplifying system design.

Flexible Multi-waveform Capability: Built-in waveform generator supports up to 3 configurable Chirp waveforms per cycle with 63 configurable segments and independent sweep and transmit power settings.

BPM Phase Modulation and Interference Suppression: Supports 0°/180° Binary Phase Modulation (BPM) for 2T4R virtual array expansion and interference suppression capability.

High-Precision, Long-Range Detection: Featuring ultra-low frequency modulation error and a wide dynamic range, coupled with multi-chip cascading capabilities to enable high-precision, multi-target detection over outdoor kilometer distances.

Comprehensive MIMO Waveform Modes: Supports TDM and multiple MIMO waveform modes, adapting to different sensing scenarios and target-density requirements.

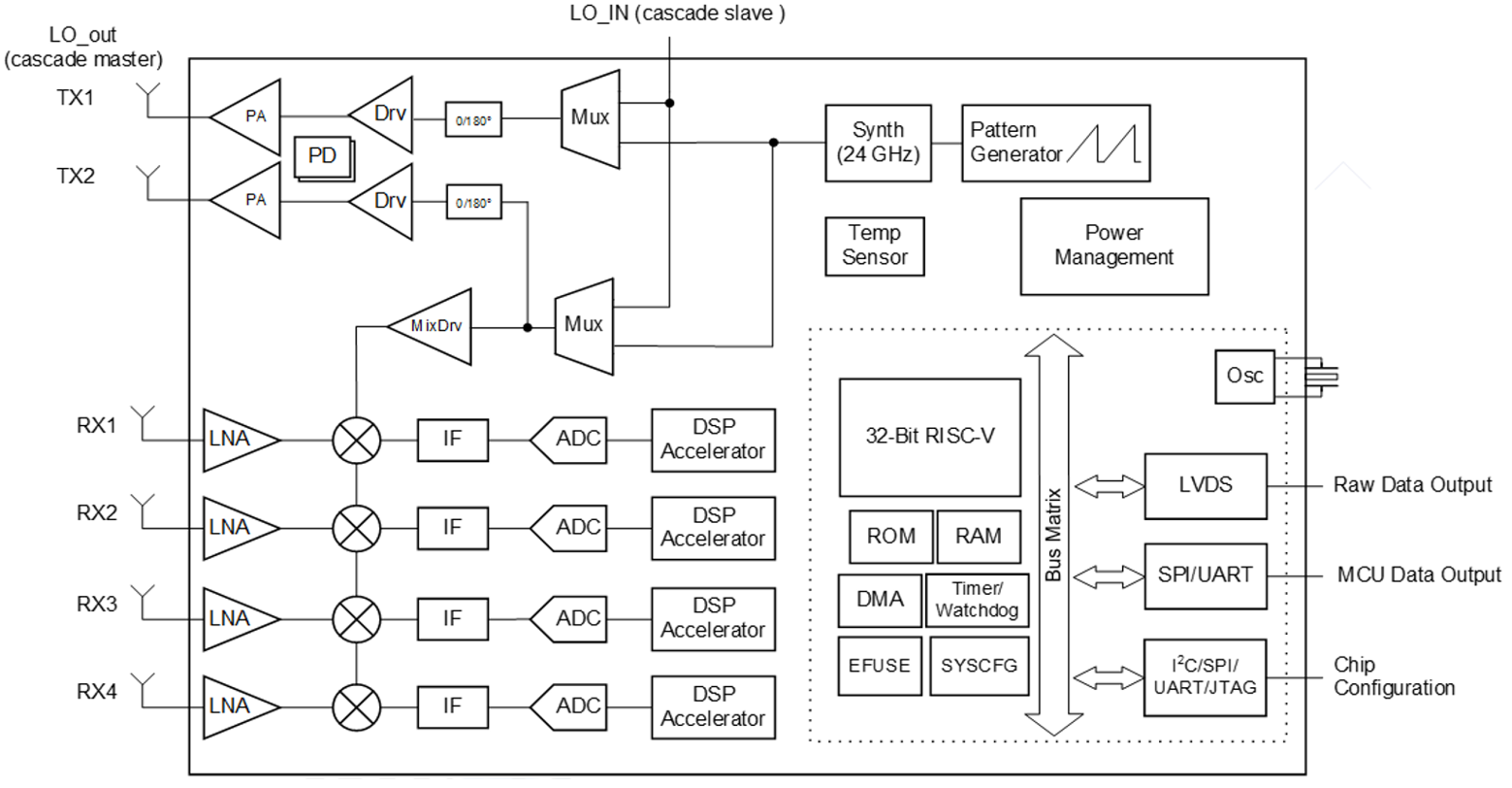

 ICL1240 Block Diagram



Applicable to Various Scenarios

Design

EVB
DEV
Download design tools
TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL1240 SDK & Transparent‑Transmission Firmware Source Code
Firmware V.1.30.7 54.2 MB 20261112 Sample
ICL1240 Development Toolchain and Environment Configuration Files
Firmware 2024.06.26 529.7 MB 20260907 Sample

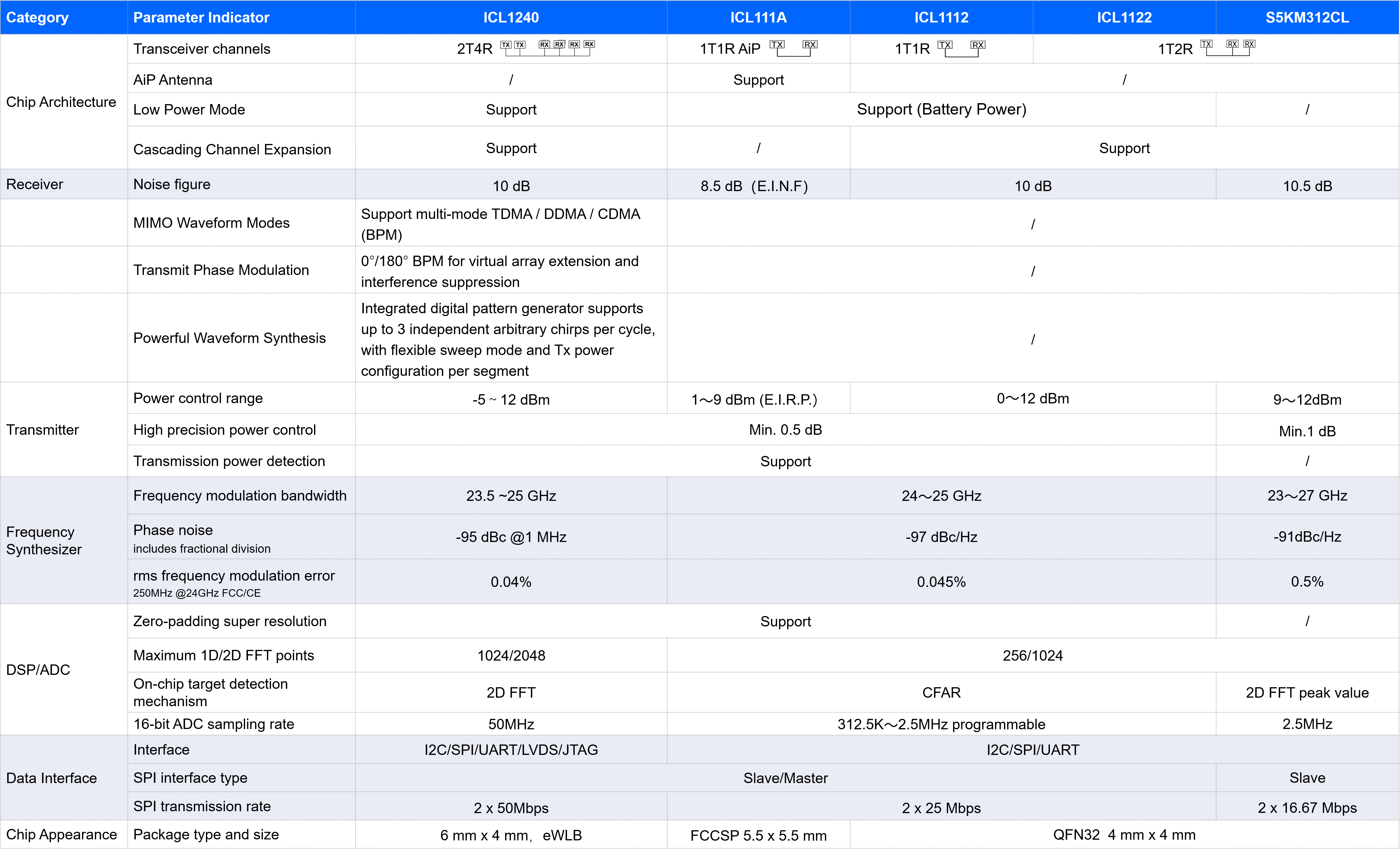

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
DataBrief_ICL1240
DataBrief Rev.1.0 185.7 KB 20260803 Sample
DS10019DN_ICL1240
DataSheet Rev.1.01 1.5 MB 20260901 Sample
UM10041N_ICL1240 SDK User Manual
User Manual Rev.1.2 14.3 MB 20261112 Sample
UM10080N_ICL1240Development Environment Setup Manual
User Manual Rev.1.2 2.1 MB 20261120 Sample
