ICL1240 SoC Evaluation Board With Array Antenna
The EVB1240 Development Kit is equipped with the ICL1240 SoC, a 2T4R L-shaped array, an ARM M7 MCU, and a TYPE-C interface, supporting SPI data output from the SoC with a maximum speed of 50 Mbps.
The EVB1240 Development Kit facilitates rapid evaluation of chip performance for mmWave sensor developers. It allows for automatic generation of register configurations based on the required radar parameters. Developers can observe and analyze collected data in real-time, easily develop algorithms, and implement a wide range of applications for multiple scenarios. The kit supports evaluation of various operating modes of the ICL1240, including TDM, BPM, and multi-waveform settings.
Based on the Development Kit, developers can also evaluate the built-in MCU of the ICL1240, which operates at a main frequency of 200 MHz and includes 128 KB of SRAM.
Features
Complete hardware system: Integrates a 2T4R mmWave sensor SoC with an L-shaped antenna array, paired with a high-performance MCU, and a TYPE-C interface.
Agile developing tools: A comprehensive chip evaluation system, featuring user-friendly radar configuration software, real-time signal quality, and waveform analysis tools.

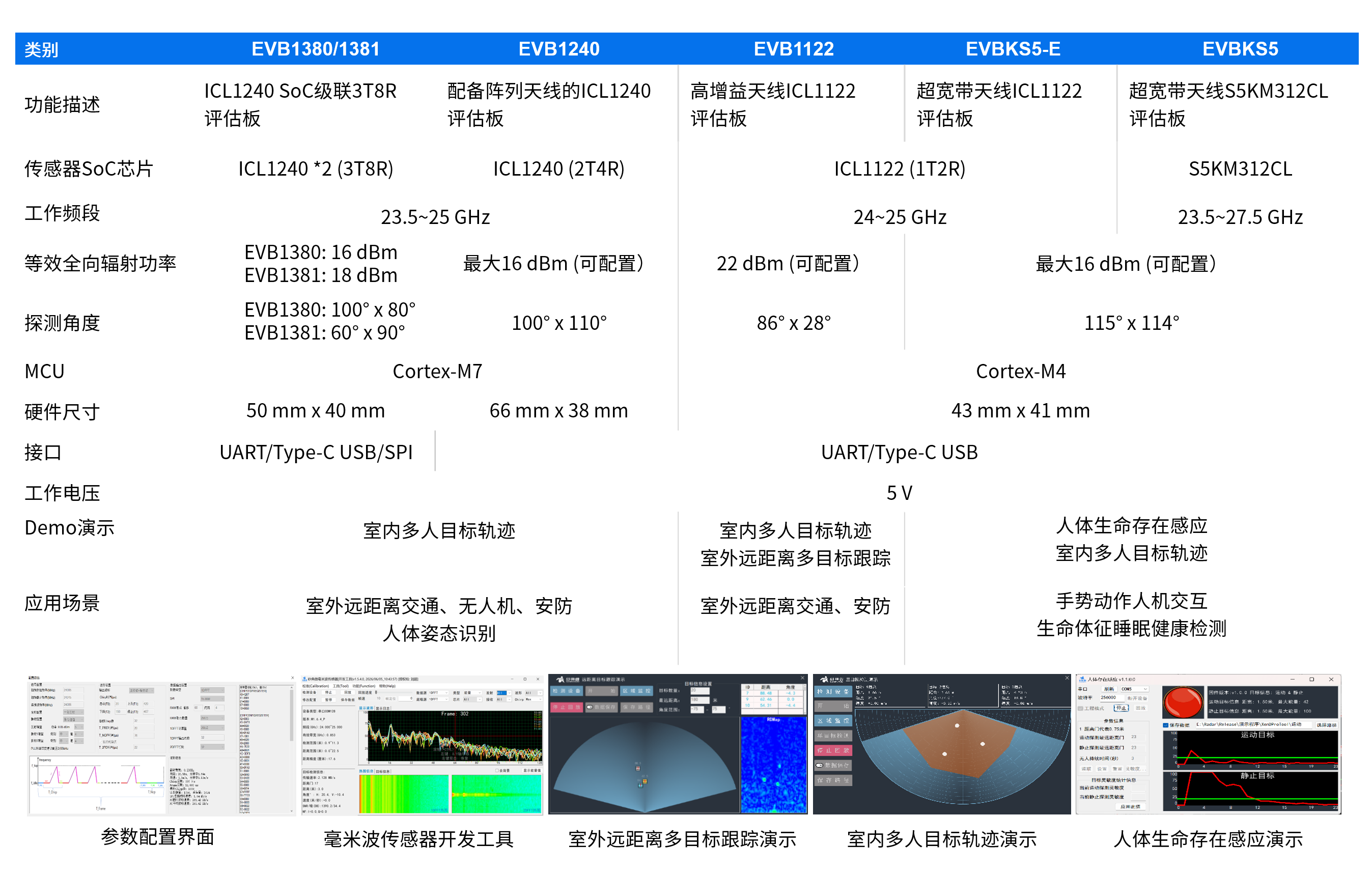

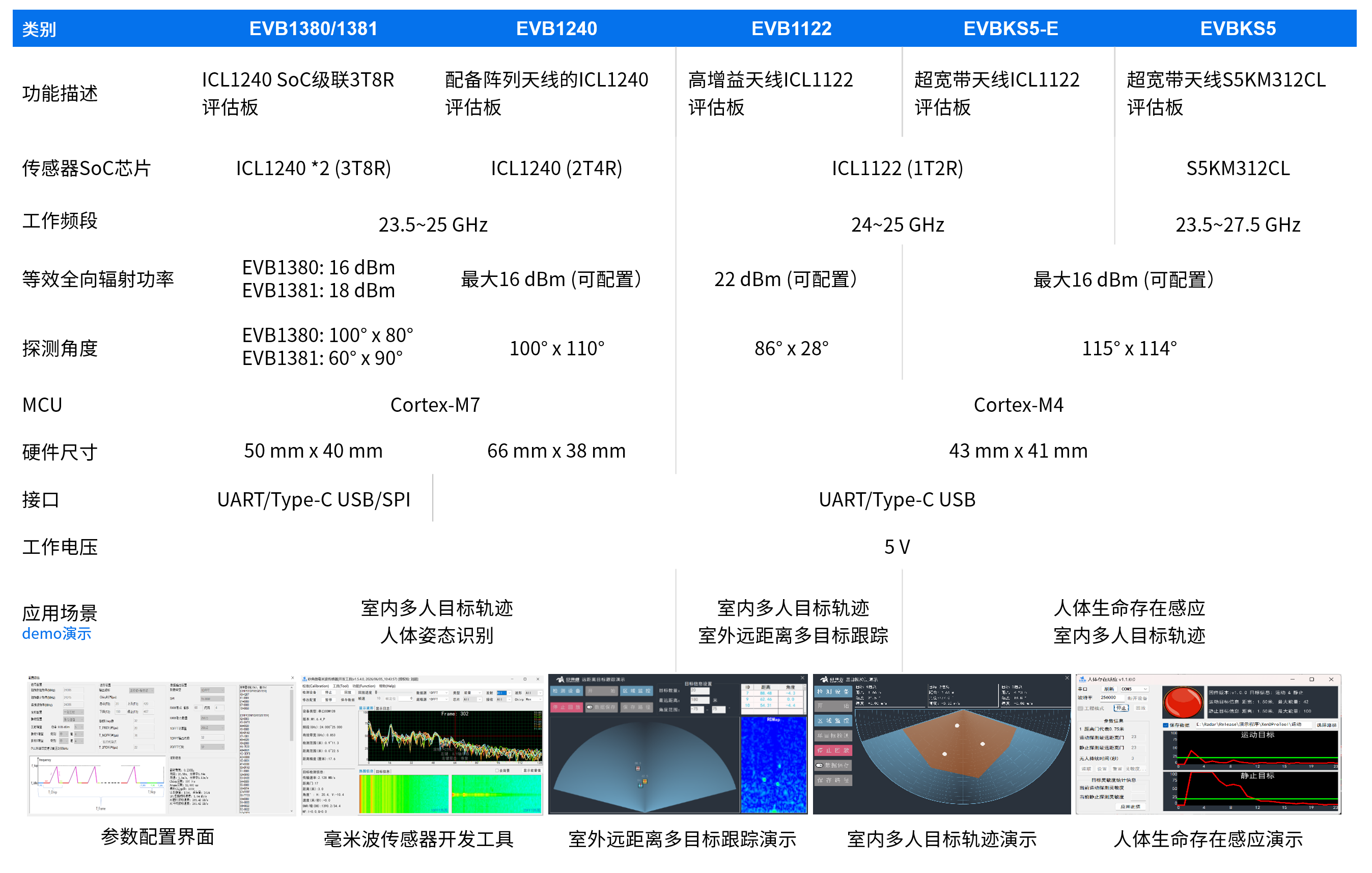

Specifications
|
Operating Frequency |
23.5~25 GHz |
|
Sweeping Bandwidth |
1.5 GHz (configurable） |
|
Equivalent Isotropic Radiated Power |
Configurable from 4 to 16 dBm (default 16 dBm) |
|
Operating Voltage |
5 V |
|
Sensor SoC |
ICL1240 (2T4R) |
|
Hardware Size |
66 mm x 38 mm |
Power supply and interfaces
Support USB interface
Support SWD interface for program debugging and flashing
Visualization Tools

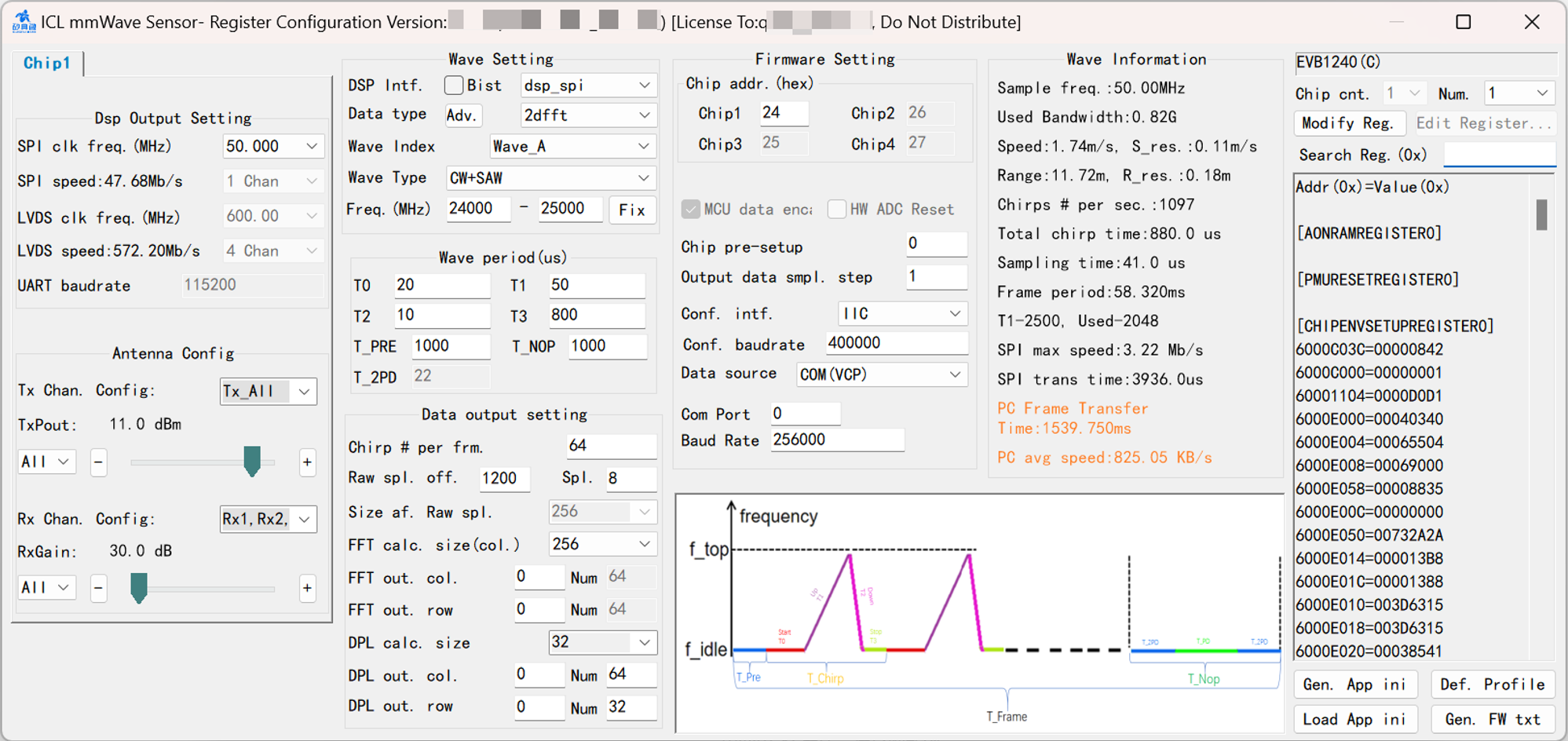

Register Configuration Interface

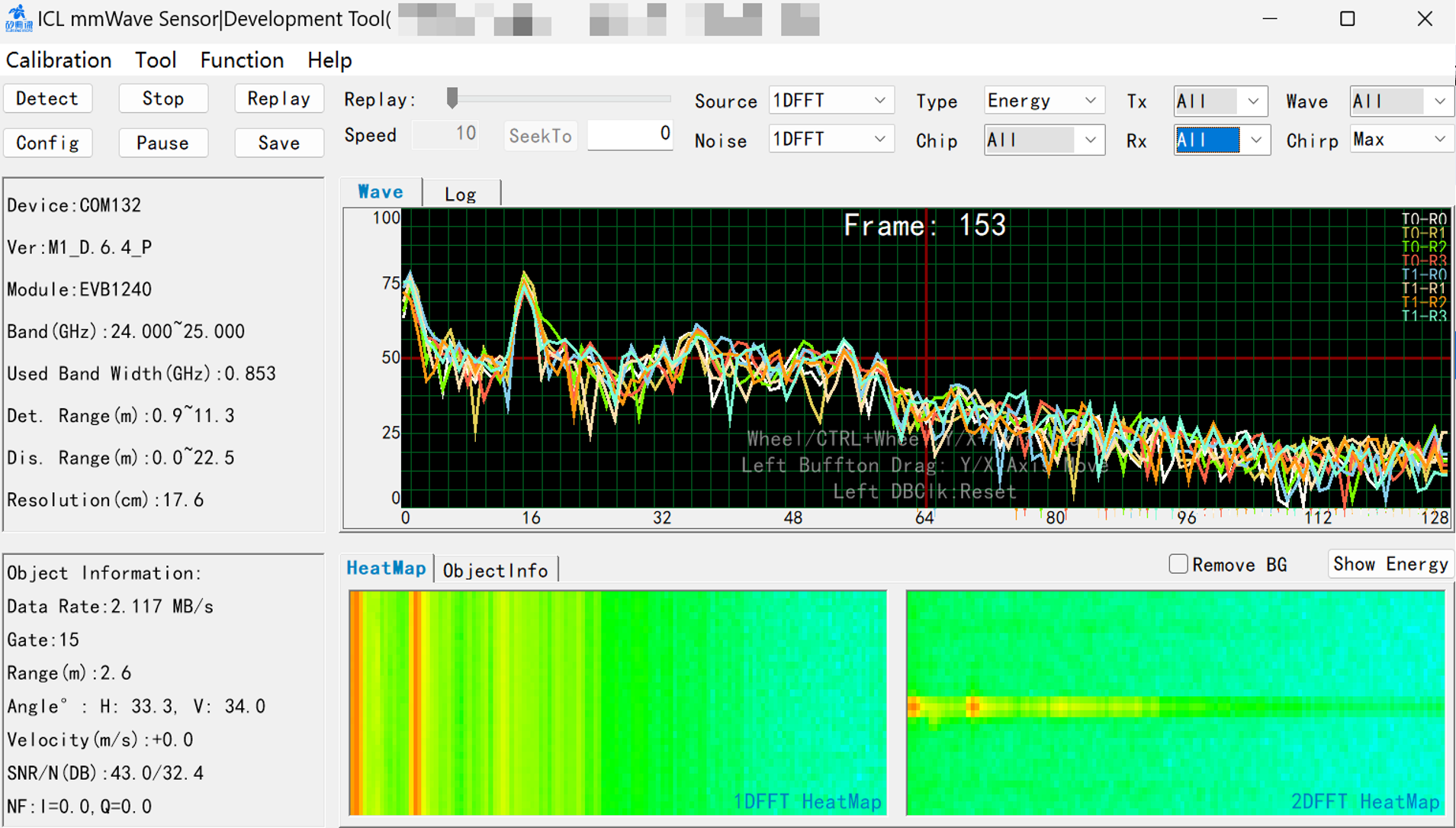

mmWave Sensor Development Tool Interface

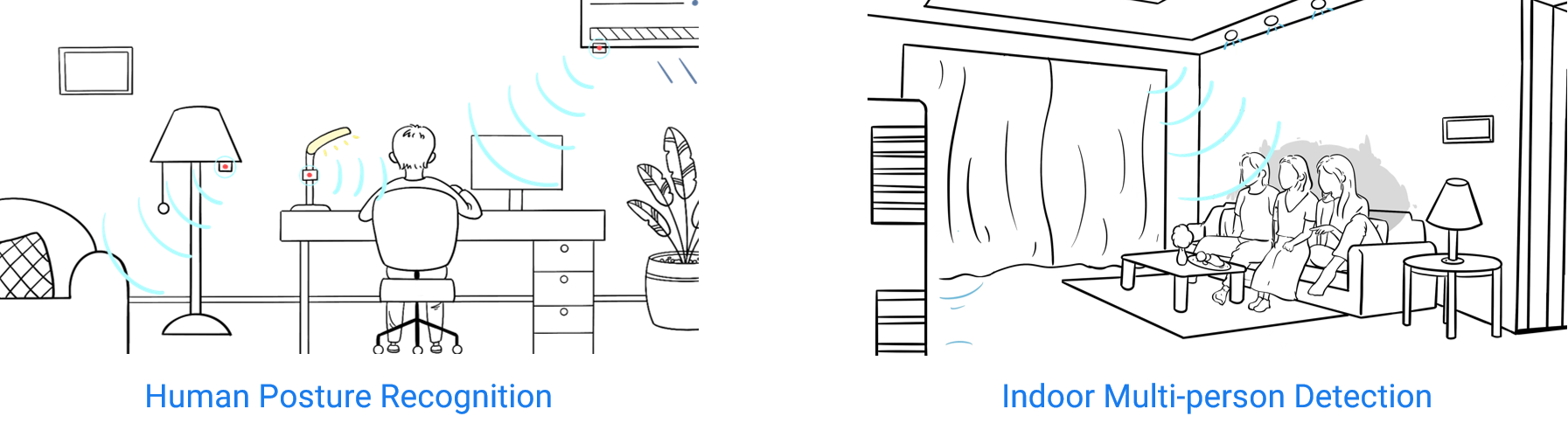

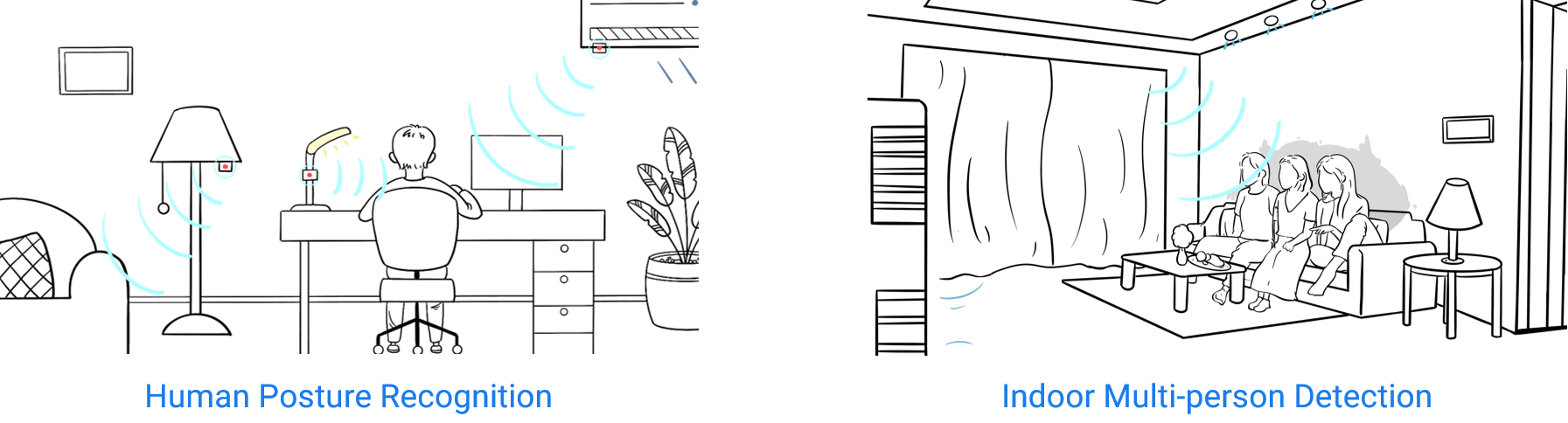

Applicable to various scenarios
| title | category | version | size | Publish Time | action |
|---|---|---|---|---|---|
| mmWave Sensor Development Tool | ONELAB Development Tool | 1.5.4.0 | 124.0 MB | 20260815 | View |
Document
| title | category | version | size | Publish Time | action |
|---|---|---|---|---|---|
| DataSheet_ICL1240 | |||||
| Application Note_mmWave Sensor Radome Design Guide | |||||
| Application Note_Multi-channel phase Calibration method_Rev.1.2 | |||||
| User Manual_EVB1240 Evaluation Kit User Manual | |||||
| User Manual_mmWave Sensor Waveform Tool User Manual | |||||
| Schematics-EVB1240 |
