ICL1240 SoC Cascaded 3T8R Evaluation Board
The EVB1380/EVB1381 development kit is equipped with two ICL1240 SoCs, a 3T8R array, an ARM M7 MCU and a Type‑C interface. It supports data output from the SoC via SPI with a maximum SPI rate of 50 Mbps.
The EVB1380/EVB1381 development kit enables mmWave sensor developers to rapidly evaluate the cascading capability of the ICL1240. It allows for automatic generation of register configurations based on the required radar parameters. Developers can observe and analyze collected data in real-time, easily develop algorithms, and implement a wide range of applications for multiple scenarios. The kit supports evaluation of various operating modes of the cascaded ICL1240, including TDM and multi-waveform settings.
The development kit includes two evaluation boards with different antenna designs. The EVB1380 is equipped with a single‑patch transmit antenna, and the EVB1381 is equipped with a dual‑patch transmit antenna for performance evaluation in various application scenarios.
Features
Complete hardware system: integrates two 2T4R millimeter‑wave sensor chips, equipped with a 3T8R array, and comes with a high‑performance MCU and Type‑C interface.
Agile developing tools: A comprehensive chip evaluation system, featuring user-friendly radar configuration software, real-time signal quality, and waveform analysis tools.
Specifications
|
Operating Frequency |
23.5~25 GHz |
|
Sweeping Bandwidth |
1.5 GHz (configurable） |
|
Equivalent Isotropic Radiated Power |
EVB1380：Configurable from 4 to 16 dBm (default 16 dBm) EVB1381：Configurable from 6 to 18 dBm (default 18 dBm) |
|
Operating Voltage |
5V |
|
Sensor SoC |
ICL1240 x 2 (3T8R) |
|
Hardware Size |
50 mm x 40 mm |
Power supply and interfaces
Support USB interface
Support SWD interface for program debugging and flashing
Visualization Tools

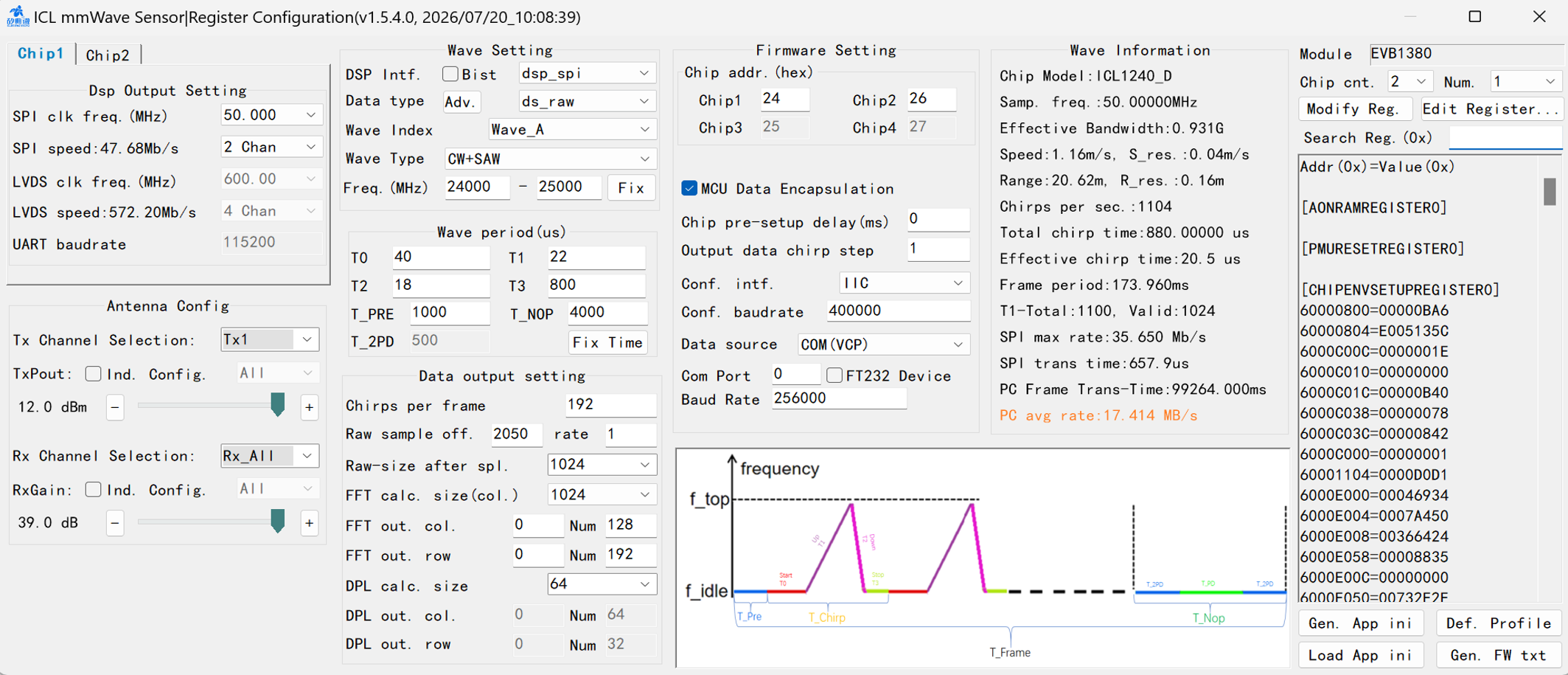

Register Configuration Interface

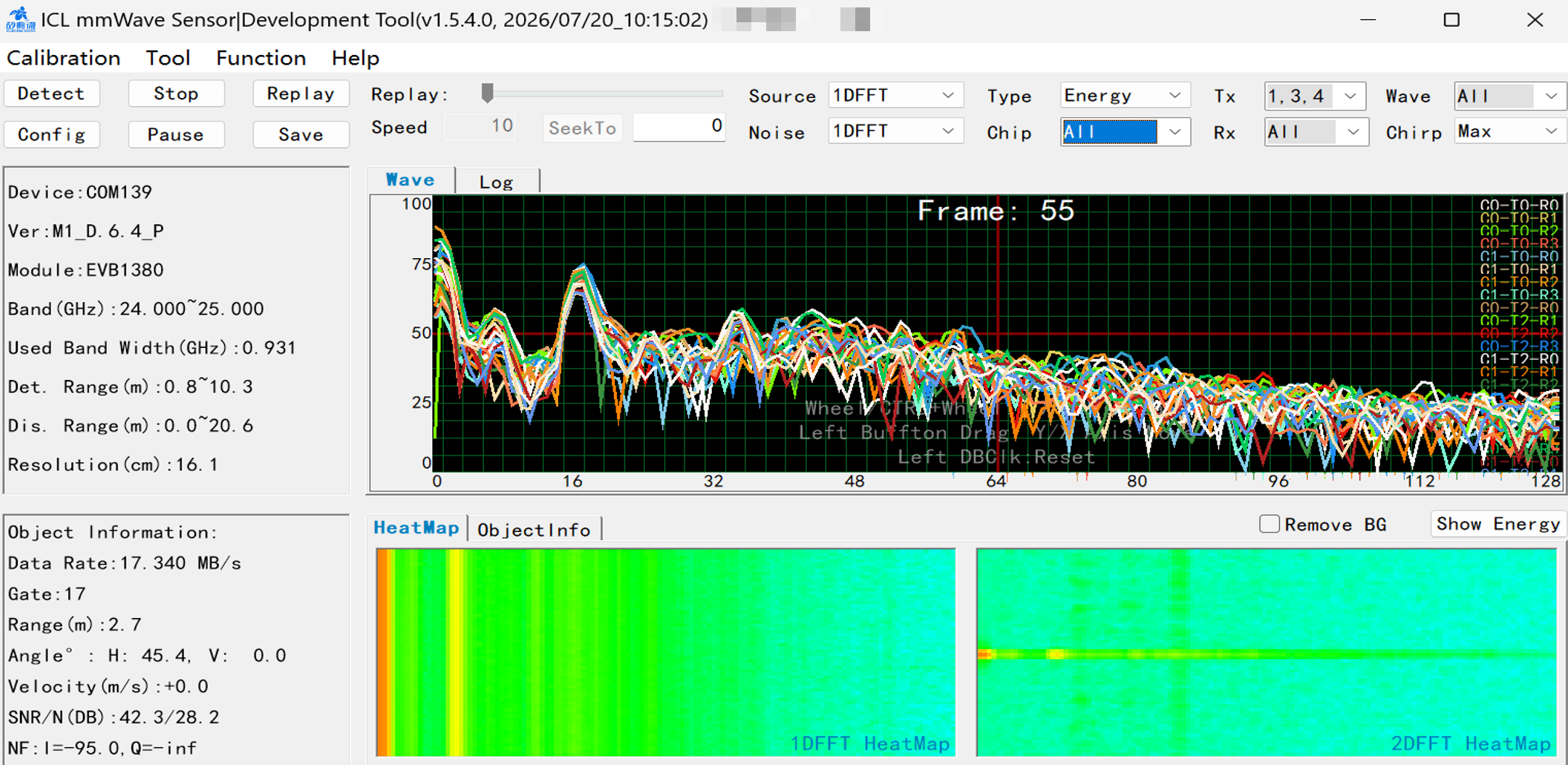

EVB Tool Interface
Applicable to various scenarios
