Overview

ONELAB 103/103Pro | 1T1R AOB

DEV103/103Pro development kits are equipped with ICL1112 1T1R mmWave sensor SoC.

Users can select between the M0 MCU Standard Edition or the M4 MCU High-Performance Edition.

It features an ultra-compact 35 mm x 7 mm narrow-bezel design, ideal for space-constrained applications.

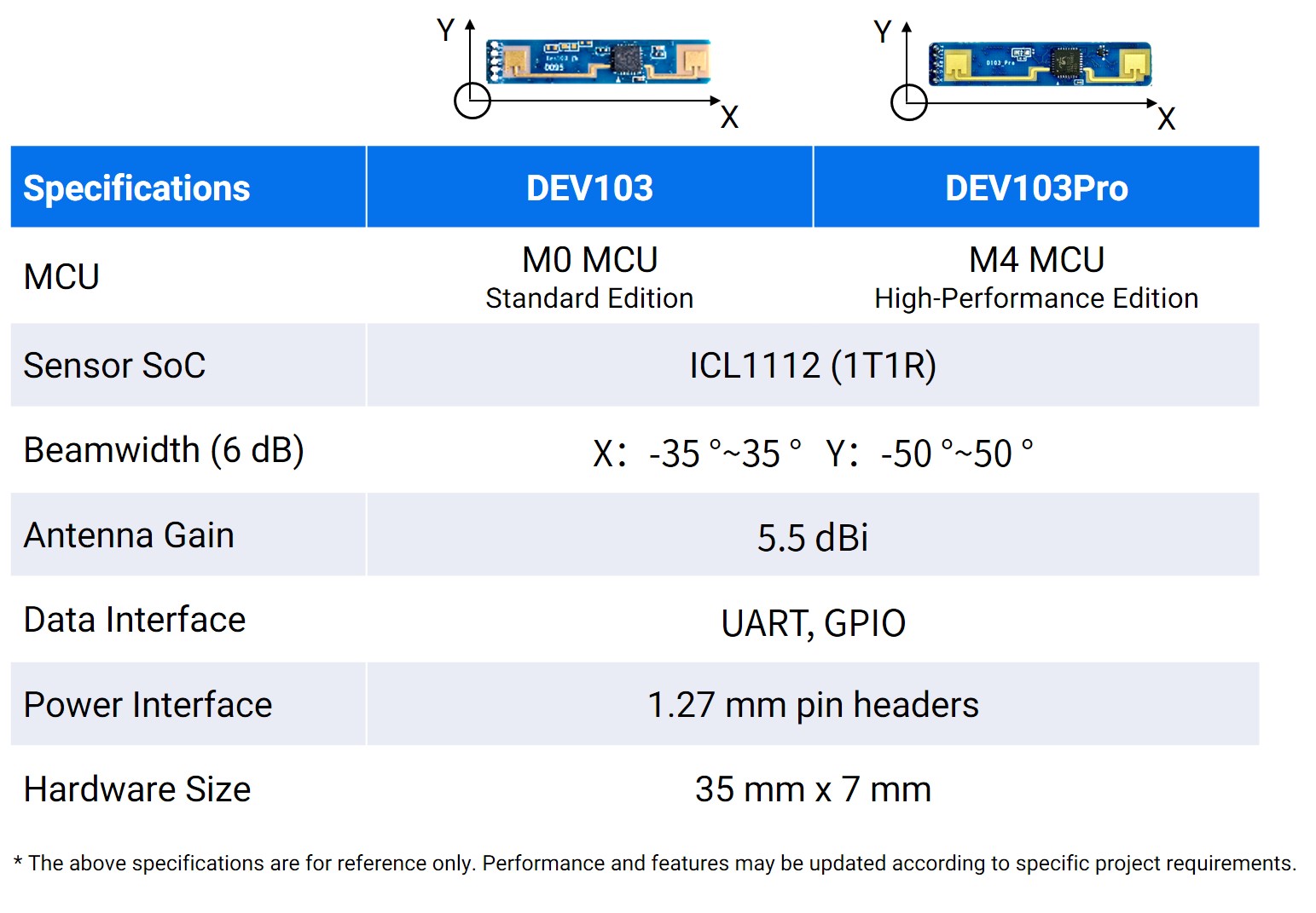

ONELAB Selection Table

Design

XenD103H | Narrow Frame Human Presence mmWave Sensor

Human Presence Detection

title	category	version	size	last update	action
mmWave Sensor Development Tool	ONELAB Development Tool	1.5.0.0	48.1 MB	20251212	View

Document

title	category	version	size	last update	action
ICL Product Brochure2025.12 Document	Brochure	V.1.0	8.1 MB	20251208	Document
DataSheet_ICL1112 Sample	DataSheet	Rev.1.2	1.1 MB	20250306	Sample
Application Note-ICL1112 Hardware Design Guide_Rev.1.0 Sample	Application Note	Rev.1.0	1.2 MB	20251210	Sample
User Manual_mmWave Sensor Waveform Tool User Manual_Rev.1.0 Sample	User Manual	Rev.1.0	2.5 MB	20251122	Sample
User Manual_ONELAB Development Kit User Manual_Rev.1.0 Sample	User Manual	Rev.1.0	4.6 MB	20251122	Sample
