XenD103H Narrow-Bezel Human Presence mmWave Sensor

The XenD103 series features a 1T1R SoC with optional AiP packaging. Adopting FMCW technology, it integrates human presence sensing and ranging functions, reliably detecting stationary, reclining and sleeping occupants. The hardware is engineered for easy embedding within the frames of smart panels, light fixtures and similar devices. Compatible with ceiling and wall mounting, it supports independent sensitivity adjustment per zone and automatic parameter generation. Seamlessly applicable to hospitality, residential and office environments, it achieves accurate detection of stationary human presence.



Features

  • Long-Range Sensing: Up to 16 m detection range,stationary/micro-motion/motion

  • Ultra-Compact Size: 6 mm Ultra-slim size, ultra-compact design

  • Precise Detection: Stationary/lying/sleeping, human presence

  • Easy Integration: On-chip antenna, fast design & production (AiP Series)

  • Cost-Effective: Efficient algorithms, cost-effective performance

  • Easy Deployment: Auto parameters, fast scenario adaptation

  • Enhanced Durability: Highly resistant, Wide temp range (AiP Series)

  • Mass Production Ready: User-friendly tools, fast mass production

  • Scenario Optimization: Integrated features, ready to use

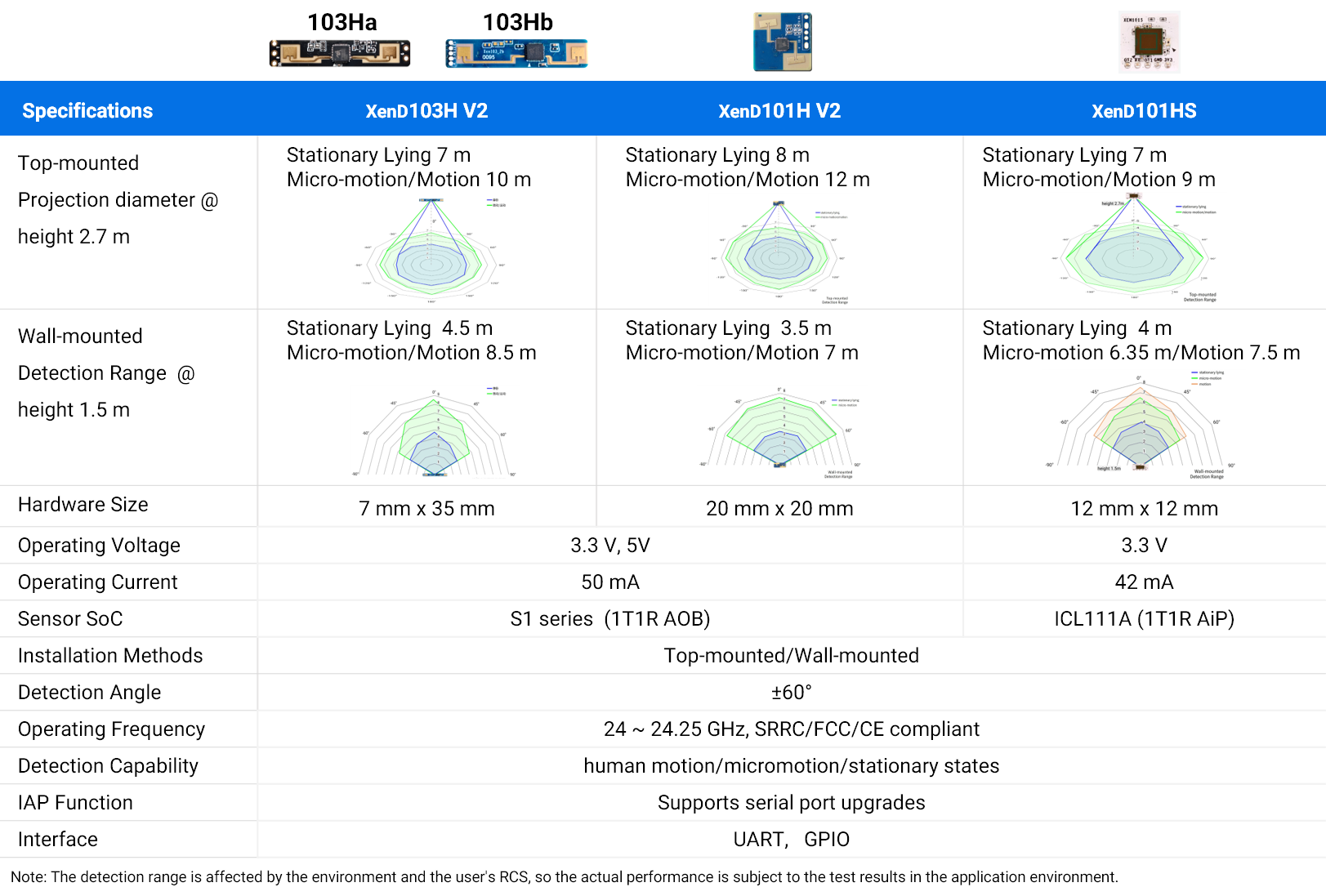

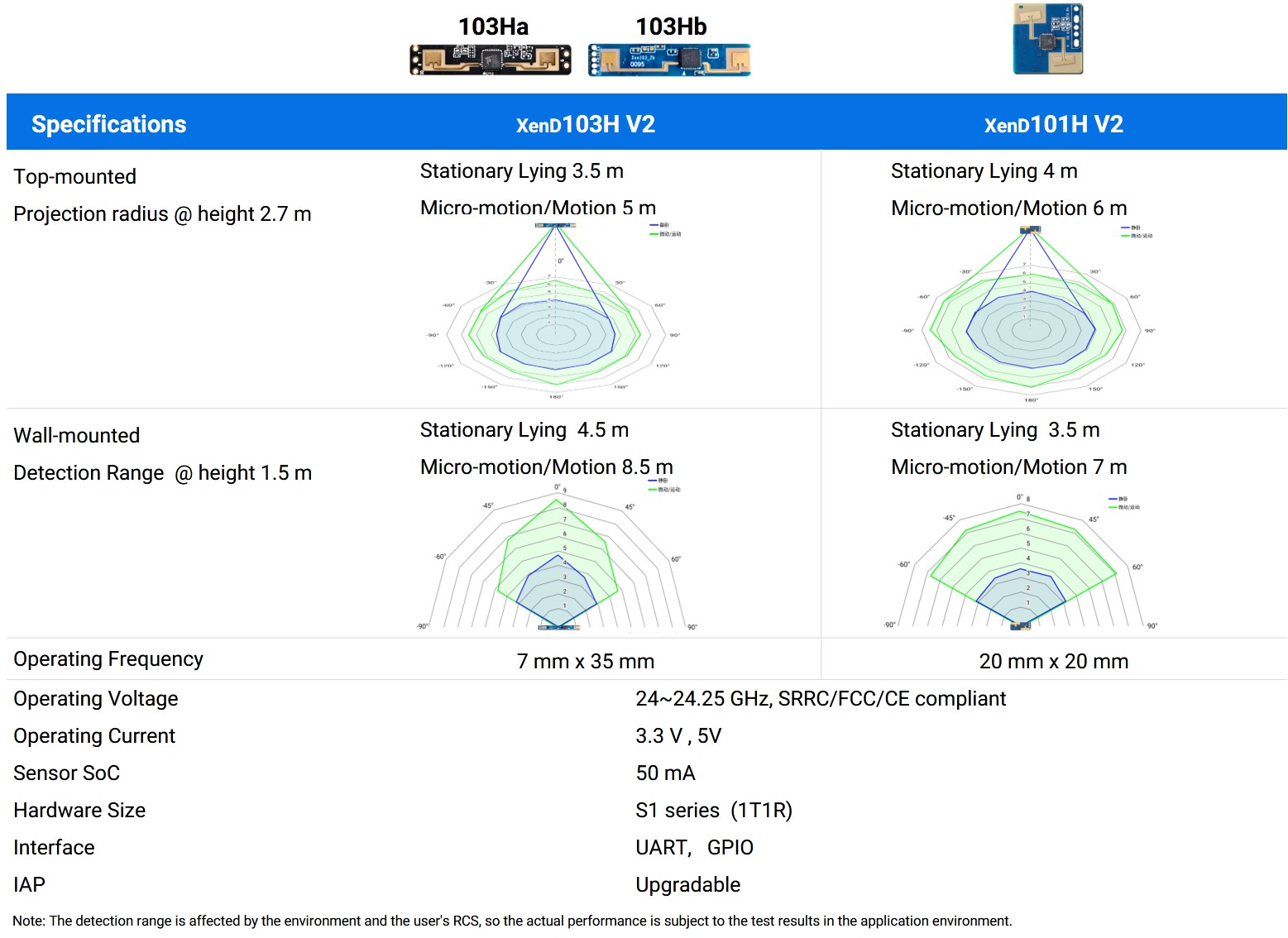

Specifications

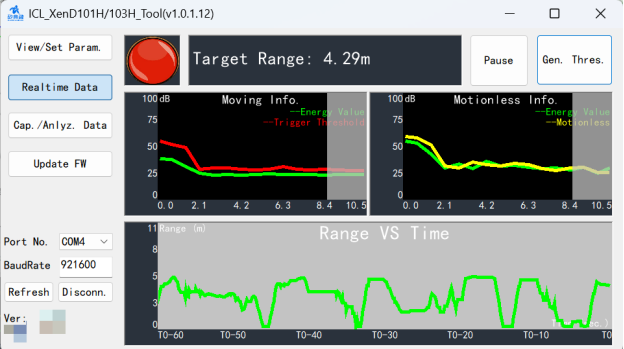

Visualization Tool



Applicable to Various Scenarios

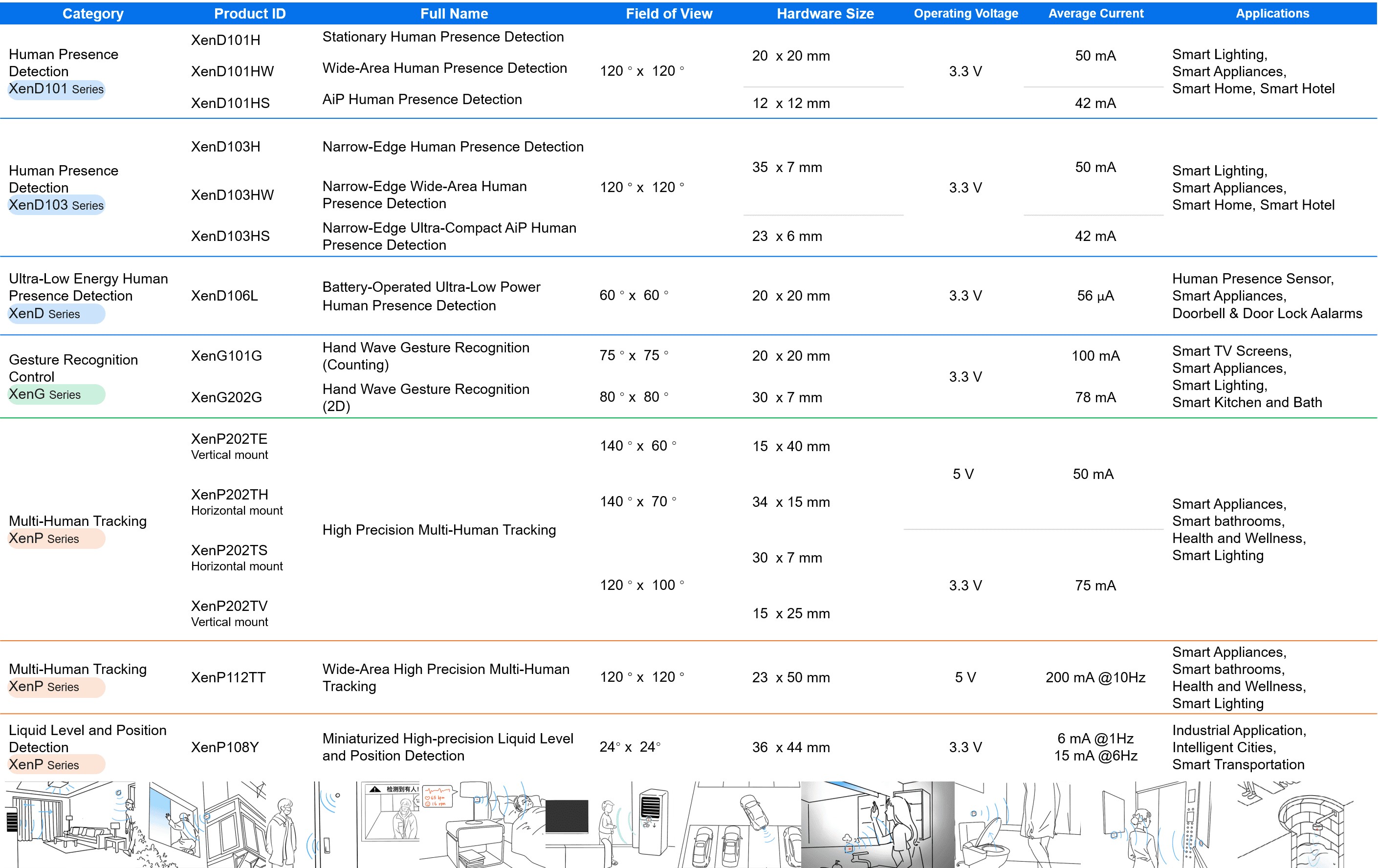

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
Product Specifications_XenD103H
Product Specification Rev.4.0 230.3 KB 20261107 Sample
Application Note_mmWave Sensor Radome Design Guide
Application Note Rev.1.1 1.1 MB 20260319 Sample
User Manual_XenD103H User Manual
User Manual Rev.4.0 1.1 MB 20261107 Sample
