XenD103HS Narrow-Bezel AiP Human Presence mmWave Sensor
The XenD103 series features a 1T1R SoC with optional AiP packaging. Adopting FMCW technology, it integrates human presence sensing and ranging functions, reliably detecting stationary, reclining and sleeping occupants. The hardware is engineered for easy embedding within the frames of smart panels, light fixtures and similar devices. Compatible with ceiling and wall mounting, it supports independent sensitivity adjustment per zone and automatic parameter generation. Seamlessly applicable to hospitality, residential and office environments, it achieves accurate detection of stationary human presence.
Features
-
Long-Range Sensing: Up to 11 m detection range,stationary/micro-motion/motion
-
Ultra-Compact Size: 6 mm Ultra-slim size, ultra-compact design
-
Precise Detection: Stationary/lying/sleeping, human presence
-
Easy Integration: On-chip antenna, fast design & production (AiP Series)
-
Cost-Effective: Efficient algorithms, cost-effective performance
-
Easy Deployment: Auto parameters, fast scenario adaptation
-
Enhanced Durability: Highly resistant, Wide temp range (AiP Series)
-
Mass Production Ready: User-friendly tools, fast mass production
-
Scenario Optimization: Integrated features, ready to use

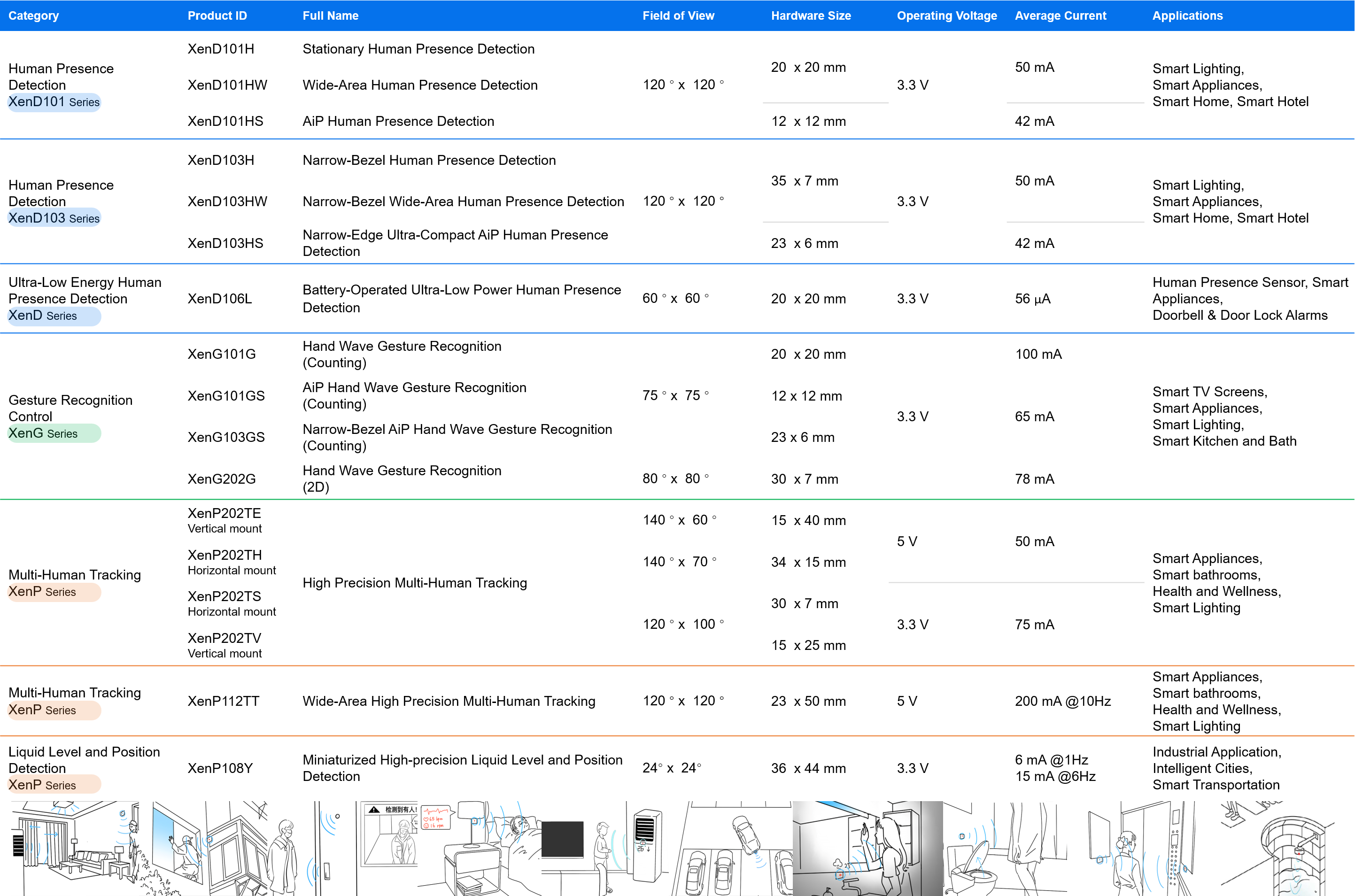

Specifications
Visualization Tools
Applicable to Various Scenarios
| title | category | version | size | Publish Time | action |
|---|---|---|---|---|---|
| Visualization Tool_XenD103HS |
Document
| title | category | version | size | Publish Time | action |
|---|---|---|---|---|---|
| ICL Product Brochure2026.8 | |||||
| Product Specifications_XenD103HS Product Specifications_Rev.1.0 | |||||
| Application Note_mmWave Sensor Radome Design Guide | |||||
| User Manual_XenD103HS User Manual | |||||
| PCB Layout_ XenD103HS | |||||
| Schematics-XenD103HS |
