Overview
S5KM312CL is an ICL 1T2R smart mmWave sensor SoC features high-performance mmWave DSP, ultra-high detection precision satisfying requirements of various AIoT applications, and over 4GHz sweeping bandwidth providing centimeter level high resolution. S3KM312CL adopts a fully integrated CMOS structure, incorporates a comprehensive mmWave sensor system, provides flexibly configurable waveform, power consumption, and gain, and built-in power management and algorithm accelerator. S5KM312CL supports cascading applications, presenting supreme performance in compact size.
Features
Two integrated Rx channels for 2D positioning.
Wide 4 GHz FMCW bandwidth for high-resolution applications.
Capable of multiple-chip cascading to expand the number of channels.
Compact CMOS design with PLL, TRX and ADC integrated on-chip.
On-chip DSP accelerator, minimalizing off-chip processing resources.
Built-in power management module, supporting 3.3 V single power supply.
Peripheral interfaces including I2C, SPI, UART, etc.

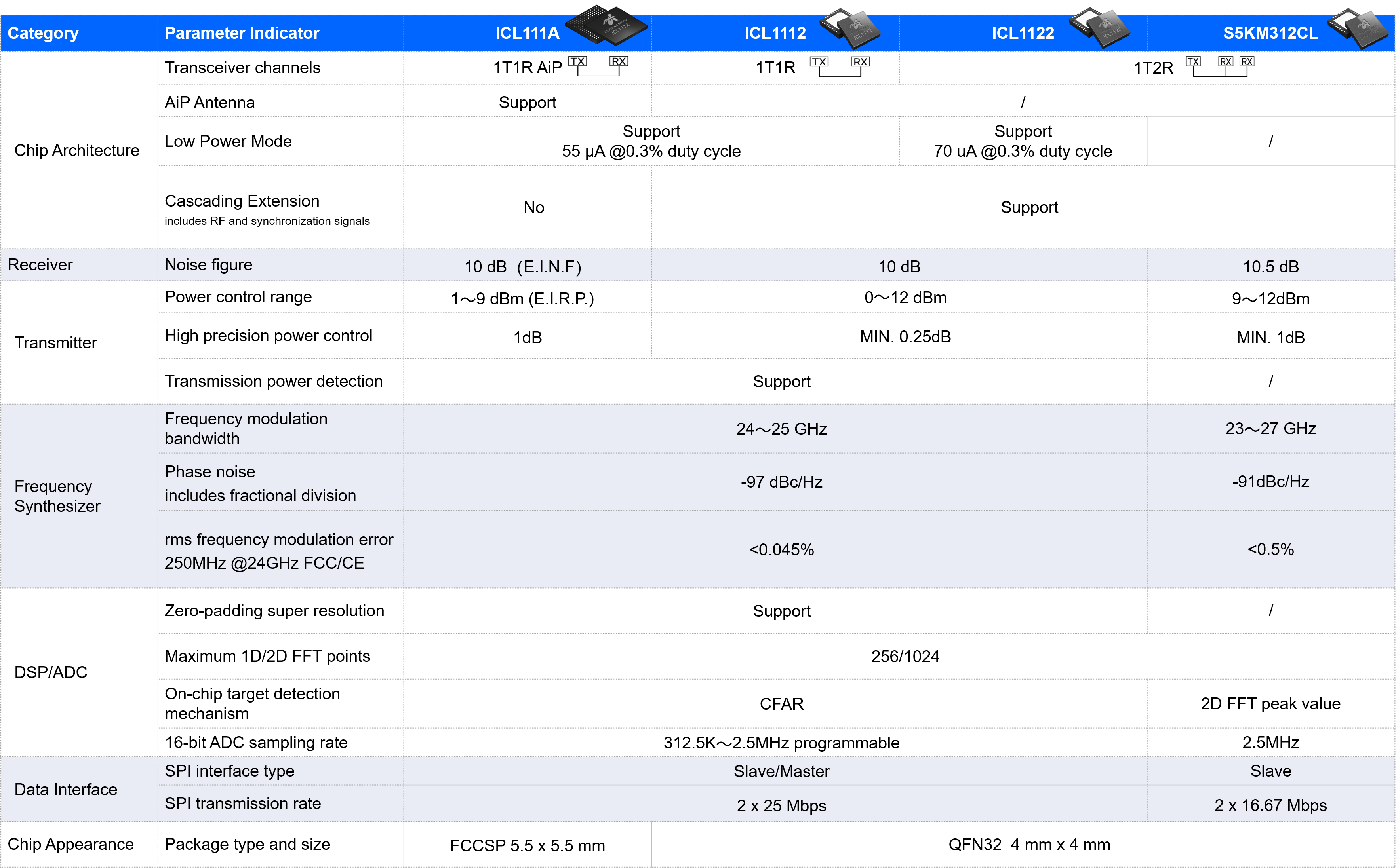

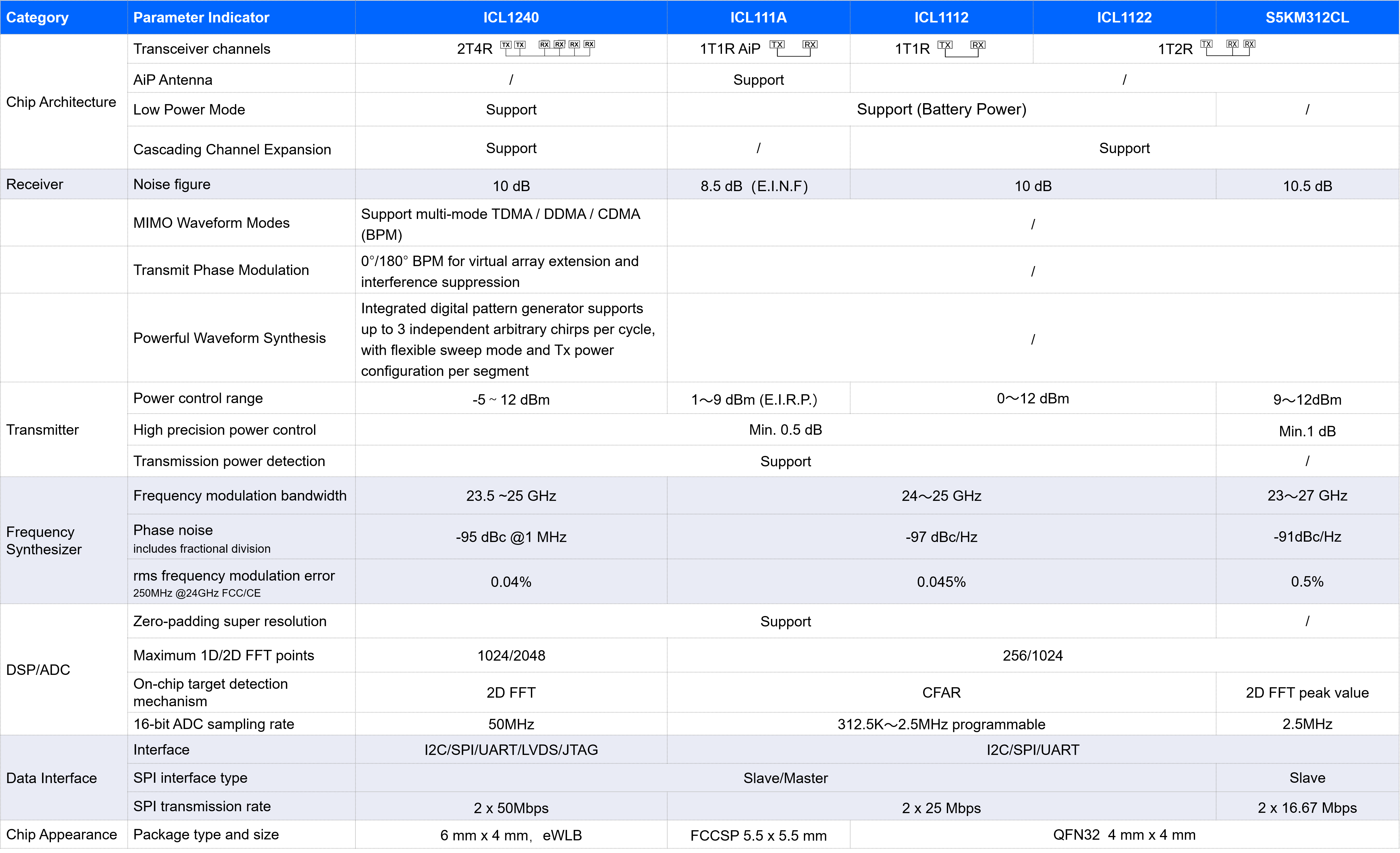

Key Parameters
|
Chip ID |
S5KM312CL |
|
Channel |
1T2R |
|
Bandwidth |
4 GHz |
|
TX Max.Power including ADC |
12 dBm |
|
RX Noise Figure including ADC |
10.5 dB |
|
PLL Phase Noise at 1MHz Offset |
-97 dBc |
|
Package |
QFN 4 mm x 4 mm |
5KM312CL Block Diagram
