XenP202TE | High-Precision Multi-Person Trajectory mmWave Sensor NEW

Multiple Trajectory Detection

Overview Design Document

Overview

High-Precision Multi-Person Trajectory mmWave Sensor

Featuring the ICL1122 mmWave sensor SoC and trajectory tracking algorithms, it can detect multi-person positions in real-time, differentiate individual trajectories in the scene, and predict movement trends. Applications include integrated radar-vision security systems, AC airflow adjustments, smart speakers control , and intelligent sensing lights.



Features

  • Multi-target Detection: Real-time detection of multiple human targets
  • Stable Tracking: High-sensitivity trajectory information of human motion/micro-motion
  • Accurate Positioning: Range accuracy of 15 cm, angle accuracy of 10°
  • Minimalist Size: Compatible with various product designs

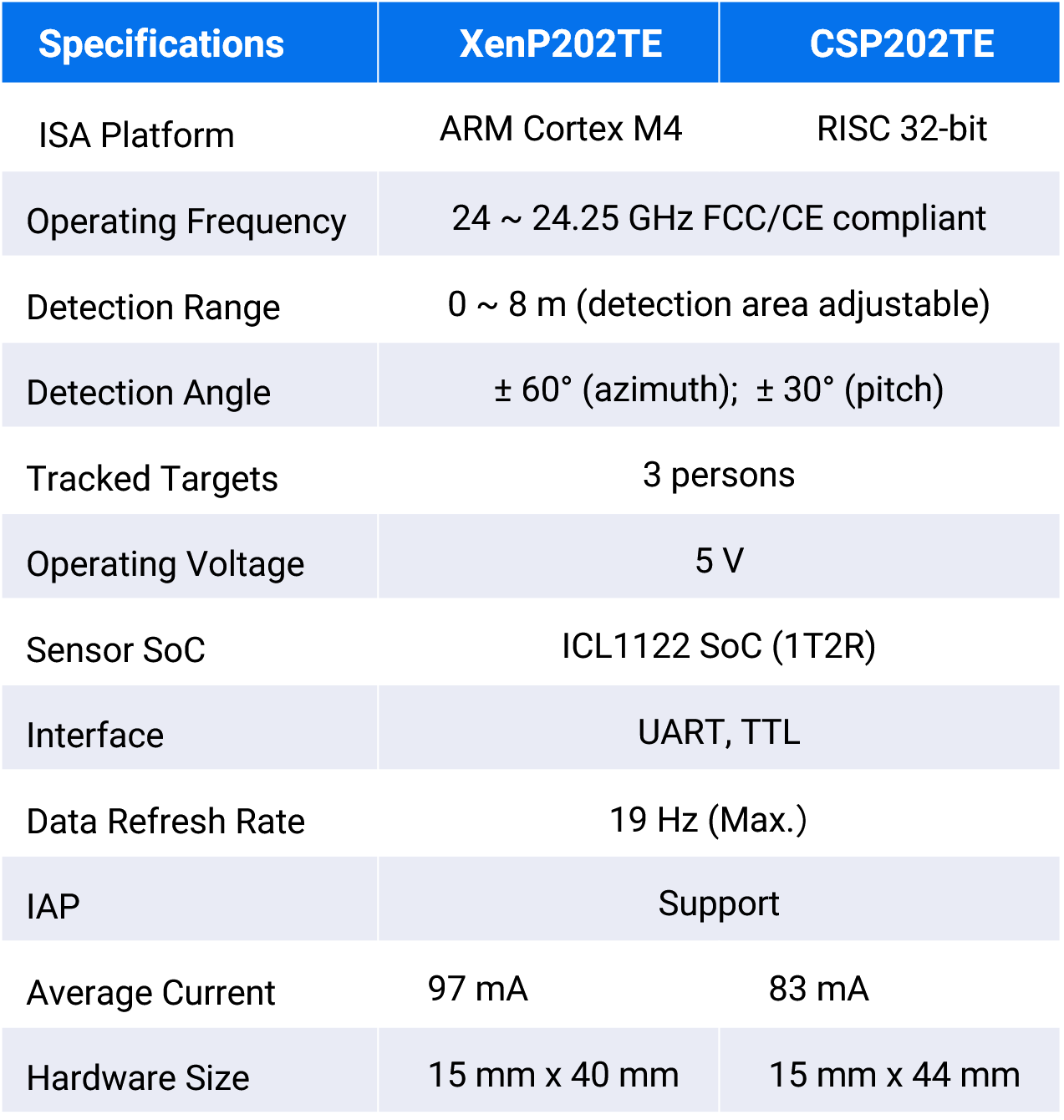

Specifications

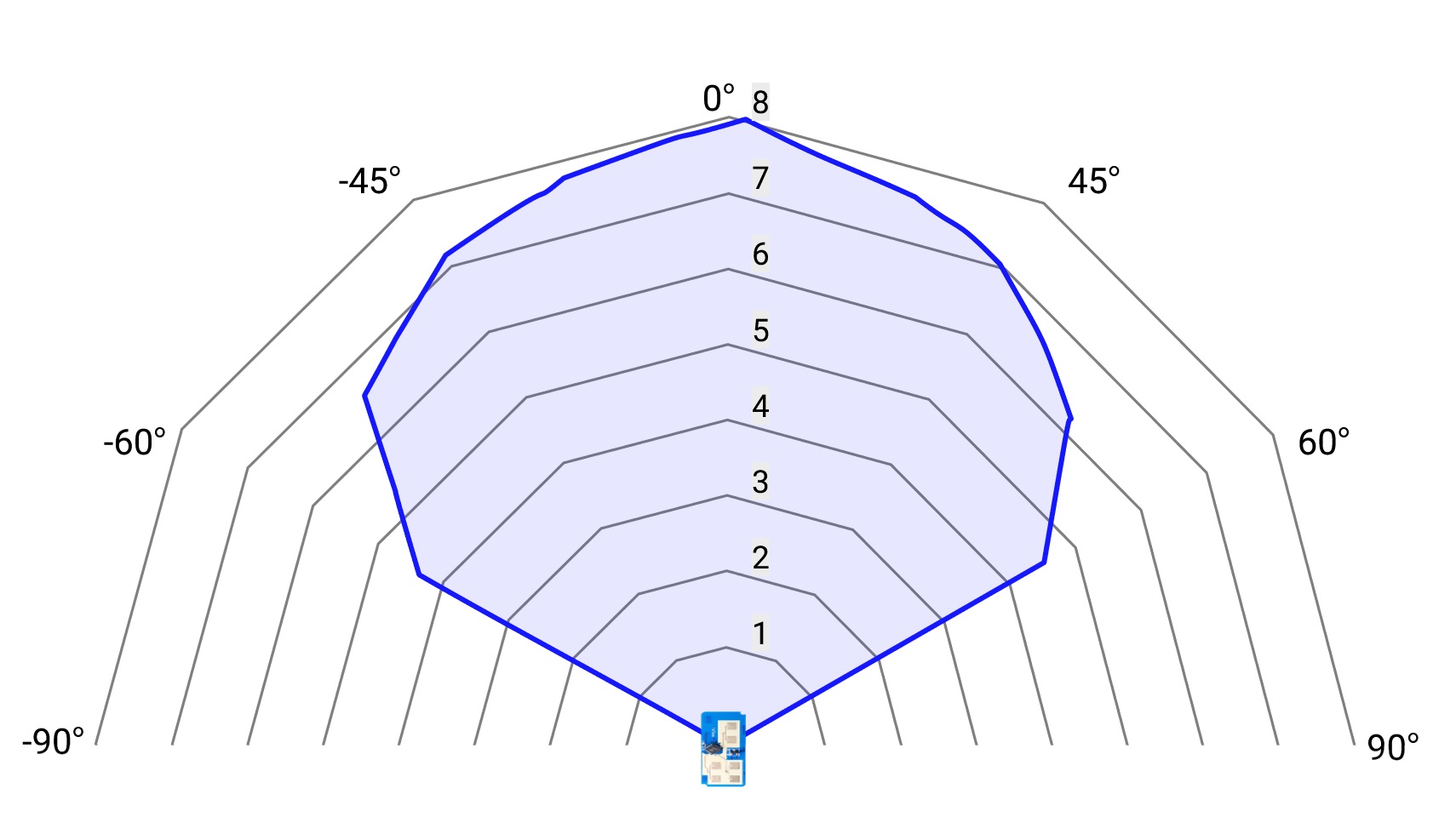

Illustration of Detection Range

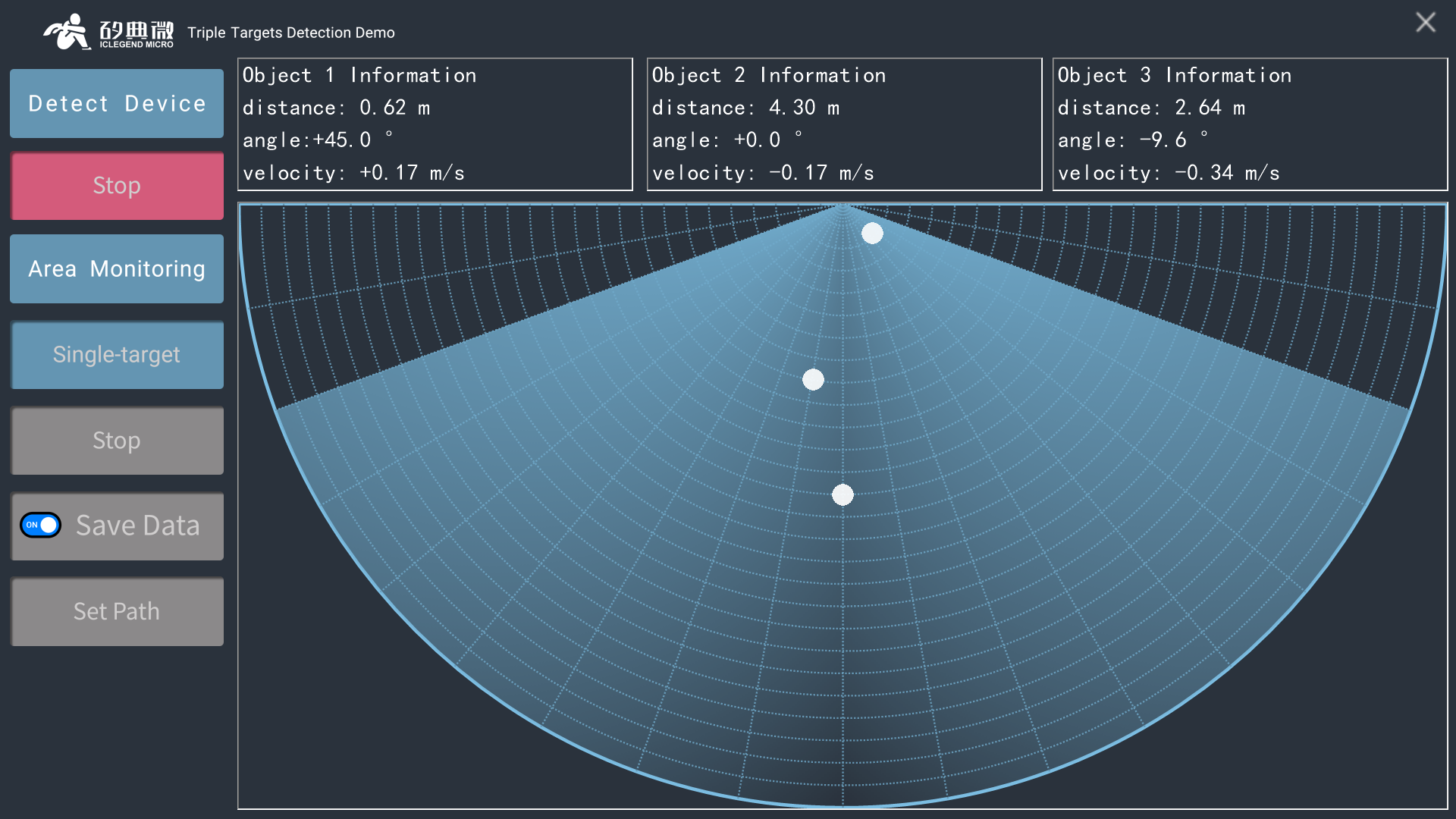

Visualization Tool for multi-target detection



Applicable to Various Scenarios

Design

  • All
  • GUI
title category version size last update action
Visualization Tool_XenP202TE new
Sample
GUI Rev.1.0 15.1 MB 20241129 Sample
title category version size last update action
Visualization Tool_XenP202TE new
Sample
GUI Rev.1.0 15.1 MB 20241129 Sample
