XenP108Y | Miniaturized High-precision Liquid Level and Position Detection mmWave Sensor NEW

Liquid Level and Position Detection

Overview Design Document

Overview

Miniaturized High-precision Liquid Level and Position Detection mmWave Sensor

——

XenP108Y is a compact high-precision liquid level and position detection sensor reference design developed based on the ICL S5KM312CL SoC. The sensor utilizes miniaturized narrow-beam antennas, ultra-wideband FMCW waveforms, along with proprietary radar signal processing and an embedded high-precision liquid level and position detection algorithm. This combination enables millimeter-level accurate detection of target distances within a specified area, with real-time reporting of results. With this reference design, users can swiftly develop compact and high-precision liquid level detection sensing products.



Features

  • Wide Range, High Precision: The detection precision within the range of 0.15 to 10 meters is 0.03~0.15 millimeters.
  • Energy-efficient and Easy to Adapt: Low operating current reduces power consumption and heat generation.
  • Compact and Easy to Deploy: Small size for convenient installation.
  • Flexible and Easy to Develop: Real-time reporting of results with configurable parameter settings.



Specifications

Detection range 0.15~10 m
Accuracy 0.5 mm
Precision 0.03~0.15 mm
Operating Frequency 23~27 GHz
Operating Voltage 3.0~3.6 V
Average Current

6 mA (report period: 1 s)

15 mA (report period: 160 ms)

* refer to section 9.5 of UM10036P.
Sensor SoC S5KM312CL
Hardware Size 44 mm×36 mm
Beam Width ±12° ( -6 dB, round trip)
Interface UART
IAP Function In-application programming (IAP) using UART

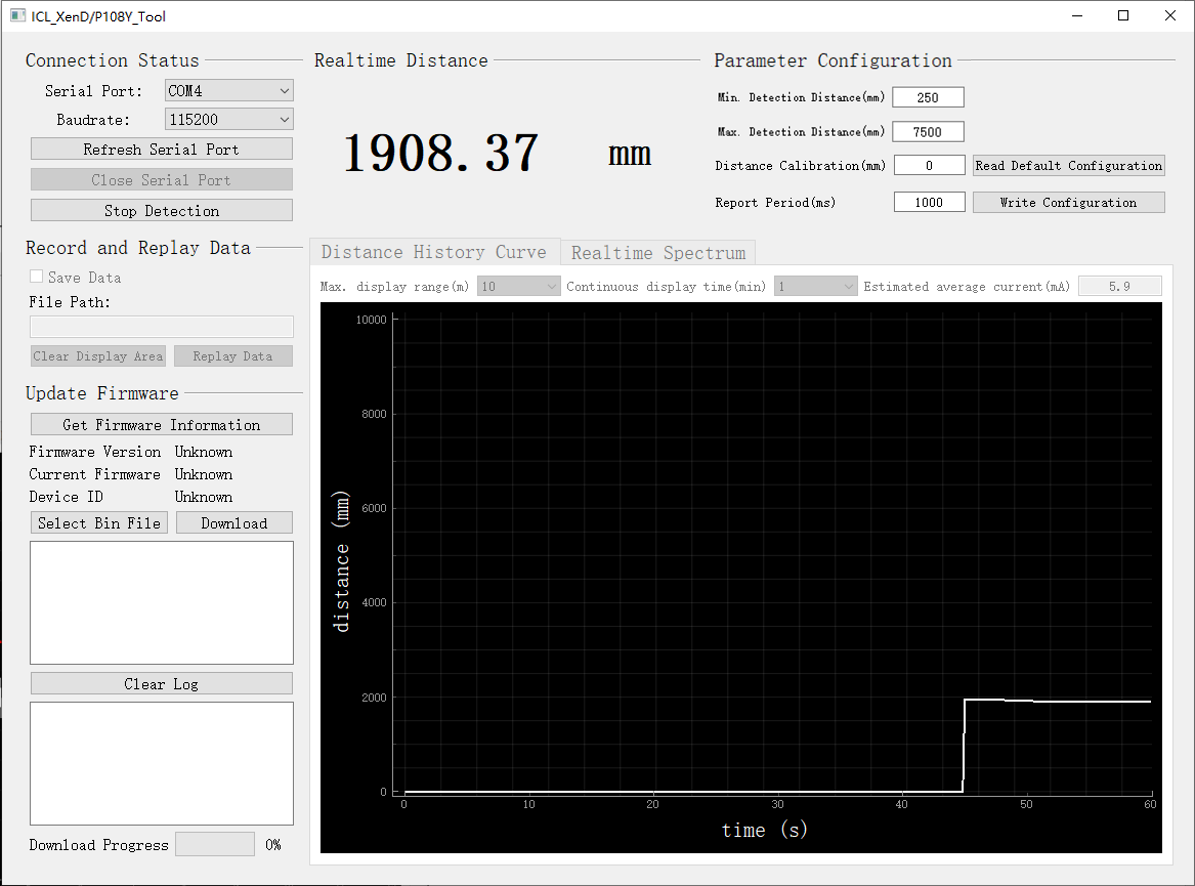

Visualization Tool

Liquid level and position detection demonstration tool

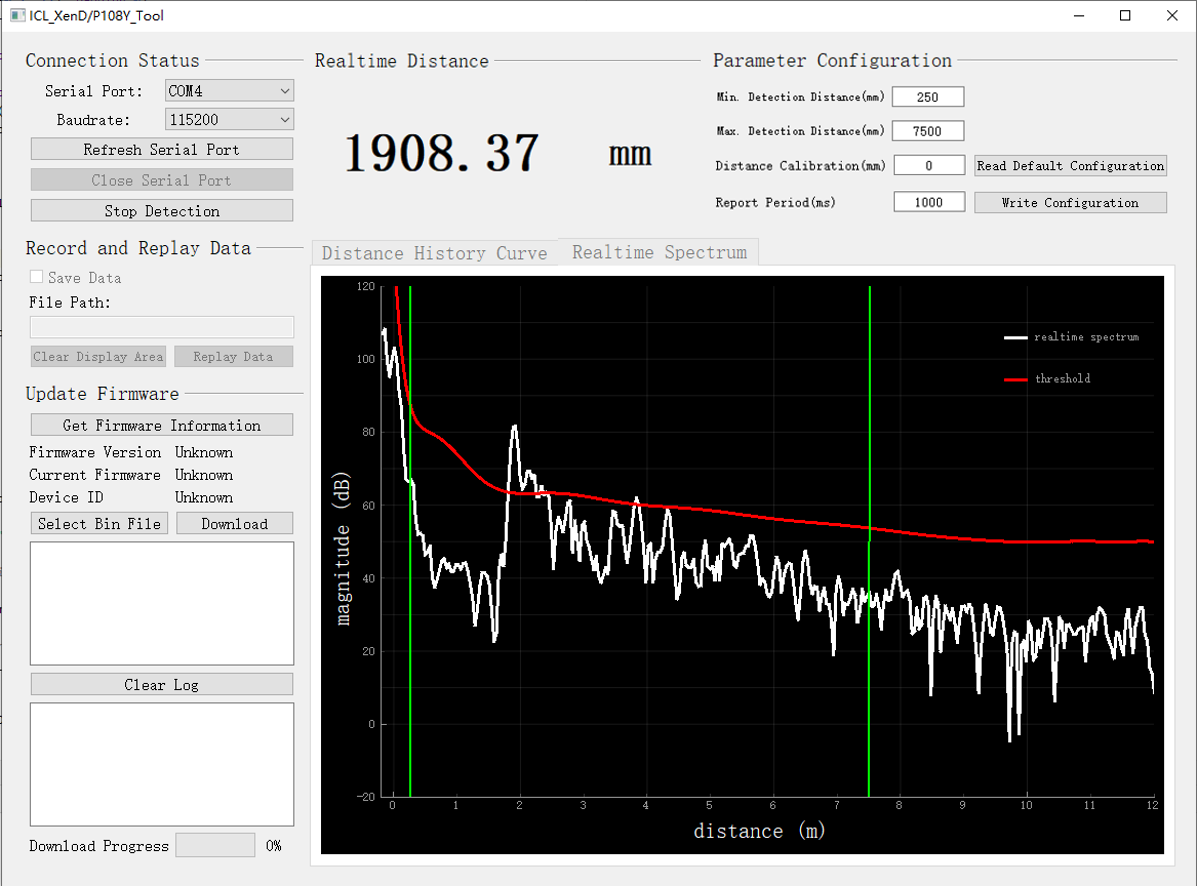

Real-time display of distance history curves and detection waveforms



Recommended Installation Illustration



Applicable to Various Scenarios
