ICL1122 SoC evaluation board with wide bandwidth antennas

The EVBKS5-E, equipped with the ICL1122 SoC, 1T2R wide bandwidth antennas, and ARM Cortex-M4 MCU, is designed to streamline the evaluation of SoC performance for developers. This advanced platform automatically generates SoC register configurations tailored to mmWave sensor parameter settings, simplifying the development process. It empowers developers to effortlessly craft algorithms for a wide range of applications by providing real-time data gathering and analysis capabilities. Additionally, the EVBKS5-E offers multiple intuitive application demonstrations, including human presence detection and multi-human tracking.



Features

Complete hardware system: Integrated 1T2R mmWave SoC, wide bandwidth antennas, high-performance MCU, and high rate USB Type-C interface.

Agile developing tools: Comprehensive SoC evaluation system, intuitive radar configuration and  real-time signal waveform analysis tools.

Diverse user experience: Built-in typical application demos, i.e. human presence detection and multi-human tracking.



 Specifications

Operating Frequency

24 GHz

Sweeping Bandwidth

24~25 GHz (reconfigurable）

Equivalent Isotropic Radiated Power

16 dBm (reconfigurable）

Operating Voltage

5 V

Sensor SoC

ICL1122(1T2R)

Hardware Size

43 mm x 41 mm

Field of View (6 dB beamwidth)

115° x 114°

IAP Function

In-application programming (IAP) using UART



Power supply and interfaces

Support UART/USB Type-C/ I/O interface communication

Maximum data transfer rate 34 Mbps

Support debugging and programming via SWD

Support USB power supply (default) or external power supply via J1



Visualization Tools

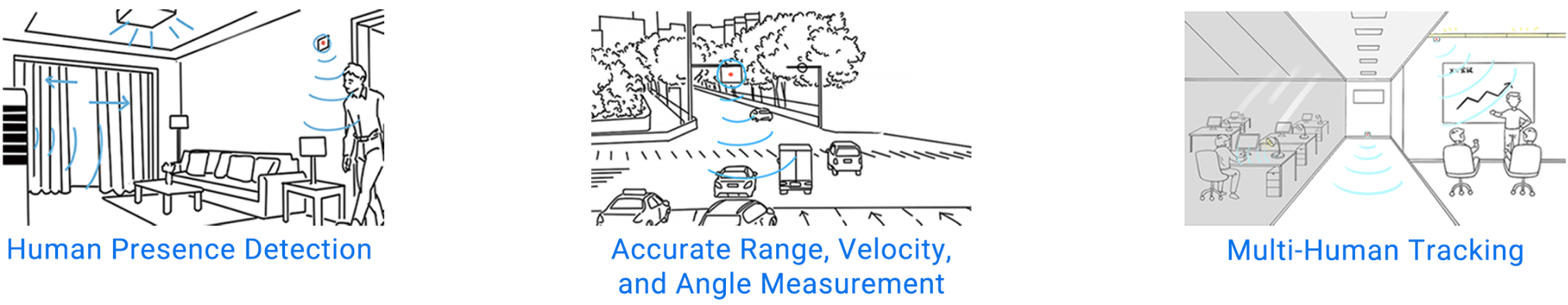

 Applicable to various scenarios
