EVB1122 | ICL1122 SoC evaluation board with high-gain antennas NEW
24G mmWave Sensor Development Kit
Overview
ICL1122 SoC evaluation board with high-gain antennas
The EVB1122, equipped with the ICL1122 SoC, 1T2R multi-patch high-gain antennas, and ARM Cortex-M4 MCU, is designed to streamline the evaluation of SoC's long-range detection performance for developers. This advanced platform automatically generates SoC register configurations tailored to mmWave sensor parameter settings, simplifying the development process. It empowers developers to effortlessly craft algorithms for a wide range of applications by providing real-time data gathering and analysis capabilities. Additionally, the EVB1122 offers multiple intuitive application demonstrations, including indoor multi-human tracking and outdoor long-range (>100 m) target tracking.
Features
Complete hardware system: Integrated 1T2R mmWave SoC, multi-patch high-gain antennas, high-performance MCU, and high-rate USB type-C interface.
Agile developing tools: Comprehensive SoC evaluation system, intuitive radar configuration and real-time signal waveform analysis tools.
Diverse user experience: Built-in typical application demos, i.e. indoor multi-human tracking, and outdoor long-range target tracking.
Specifications
|
Operating Frequency |
24 GHz |
|
Sweeping Bandwidth |
24~25 GHz (reconfigurable） |
|
Equivalent Isotropic Radiated Power |
22 dBm (reconfigurable） |
|
Operating Voltage |
5V |
|
Sensor SoC |
ICL1122(1T2R) |
|
Hardware Size |
43 mm x 41 mm |
|
Field of View (6 dB beamwidth) |
86° x 28° |
|
IAP Function |
In-application programming (IAP) using UART |
Power supply and interfaces
Support UART / USB Type-C / I/O interface communication
Maximum data transfer rate 34 Mbps
Support debugging and programming via SWD
Support USB power supply (default) or external power supply via J1
Visualization Tools

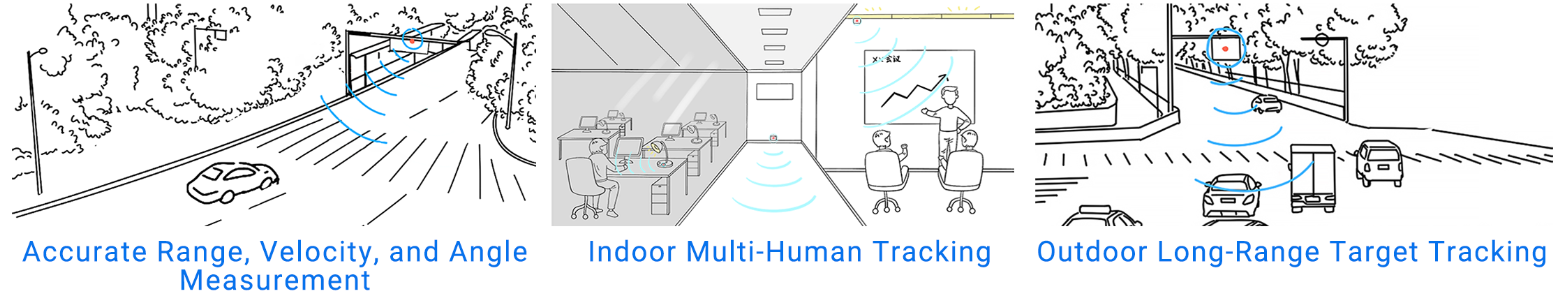

Applicable to various scenarios
Design
- All
- GUI
- Firmware
Document
- All
- Introduction
- DataSheet
- User Manual
- Release Note
- PCB
- Schematics
- Hardware Production Document
