Hand Wave Gesture Recognition mmWave Sensor

The XenG202G is a high-precision 24GHz millimer-wave sensor reference design. It integrates gesture recognition and human proximity wake-up functions. Based on FMCW (Frequency Modulated Continuous Wave) technology and target recognition algorithms, it enables proximity wake-up of smart devices and gesture control functions such as left wave, right wave, left-right wave, right-left wave, and tap. It is suitable for applications such as smart screens, smart lighting, smart home appliances, and smart kitchen and bathroom appliances.

Features

Gesture recognition: Non-contact control, high-precision gesture recognition, capable of identifying five gestures: left wave, right wave, left-right wave, right-left wave, and tap.

Convenient development: Integrated human sensing and ranging function, with multi-parameter configuration available.

Precise ranging: Human ranging accuracy ±20 cm, with adjustable sensing range.

Interference shielding: Outputs distance and speed, with user-configurable response distance and speed thresholds for secondary development.

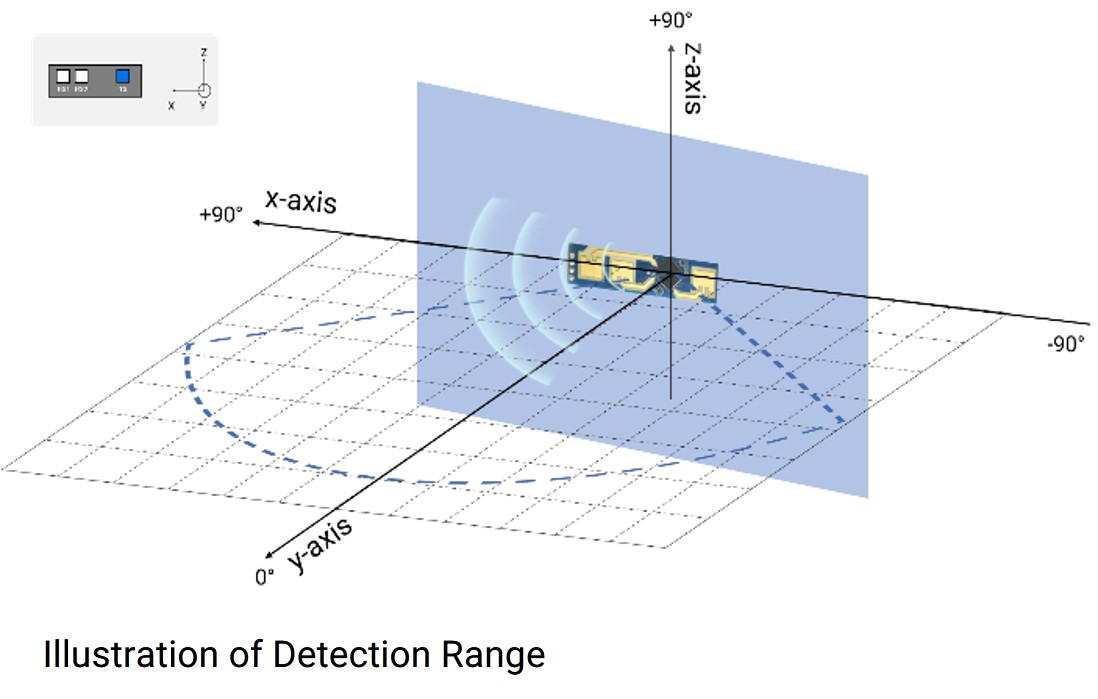

Illustration of Detection Range

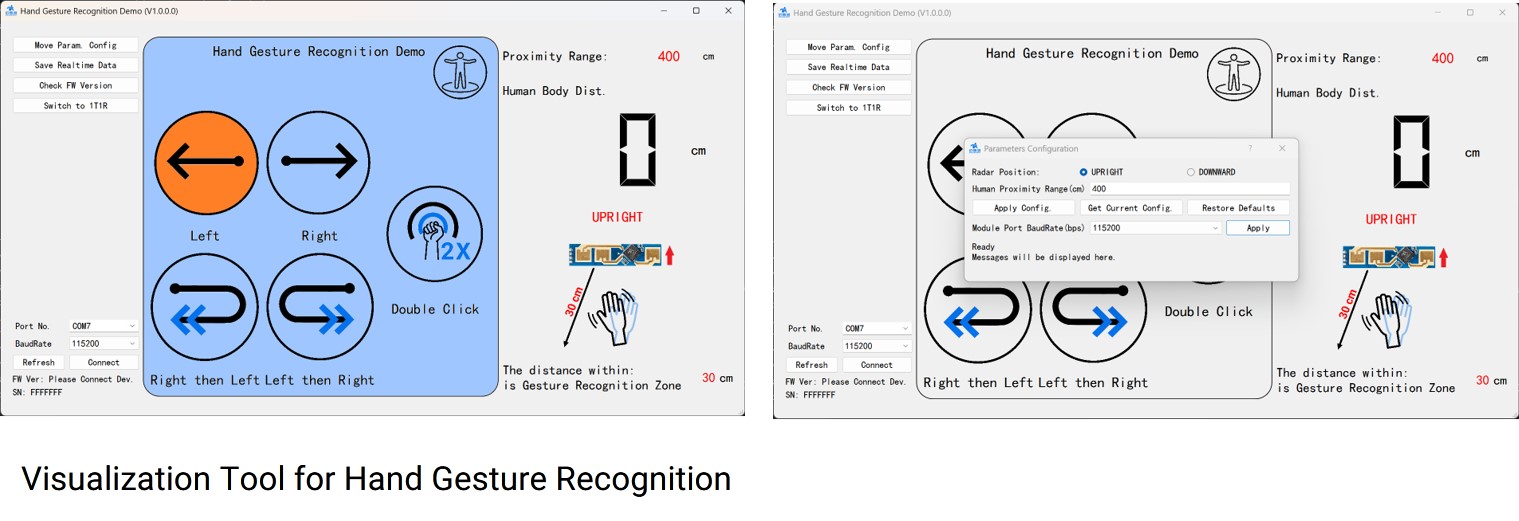

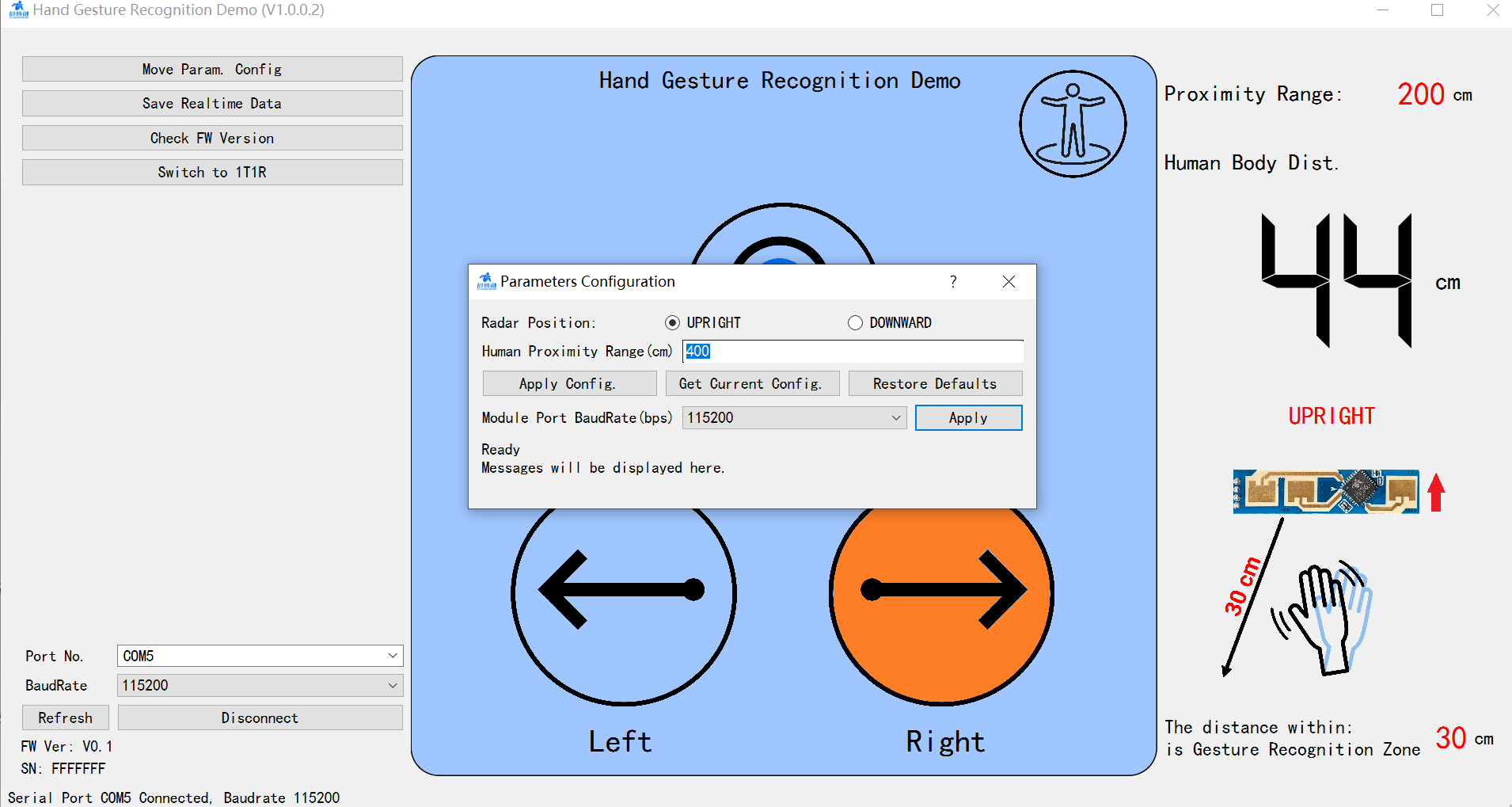

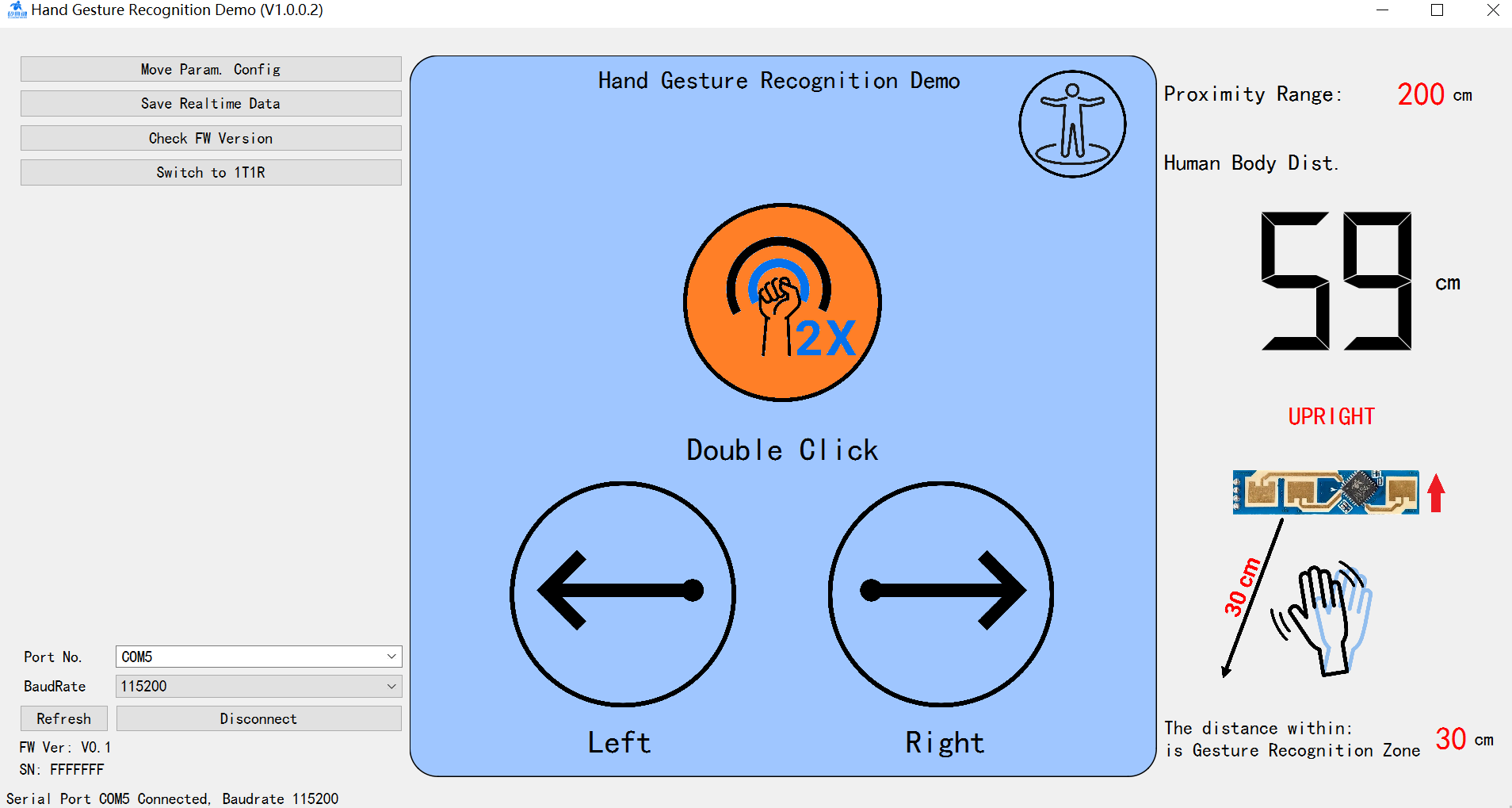

Visualization Tools

Applicable to Various Scenarios
