XenD101H Stationary Human Presence mmWave Sensor

The XenD101 series features a 1T1R SoC（optional AiP SoC). Adopting FMCW technology, it integrates human presence sensing and ranging functions, reliably detecting stationary, reclining and sleeping occupants. Its wide-beam antenna design delivers extensive coverage, ideal for large spaces such as living rooms, meeting rooms and public areas. Compatible with ceiling and wall mounting, it supports.



Features

  • Long-Range Sensing: Up to 16 m detection range,stationary/micro-motion/motion

  • Ultra-Compact Size: 12 mm ultra-miniature size, ultra-compact design

  • Precise Detection: Stationary/lying/sleeping, human presence

  • Easy Integration: On-chip antenna, fast design & production (AiP Series)

  • Cost-Effective: Efficient algorithms, cost-effective performance

  • Easy Deployment: Auto parameters, fast scenario adaptation

  • Enhanced Durability: Highly resistant, Wide temp range (AiP Series)

  • Mass Production Ready: User-friendly tools, fast mass production

  • Scenario Optimization: Integrated features, ready to use

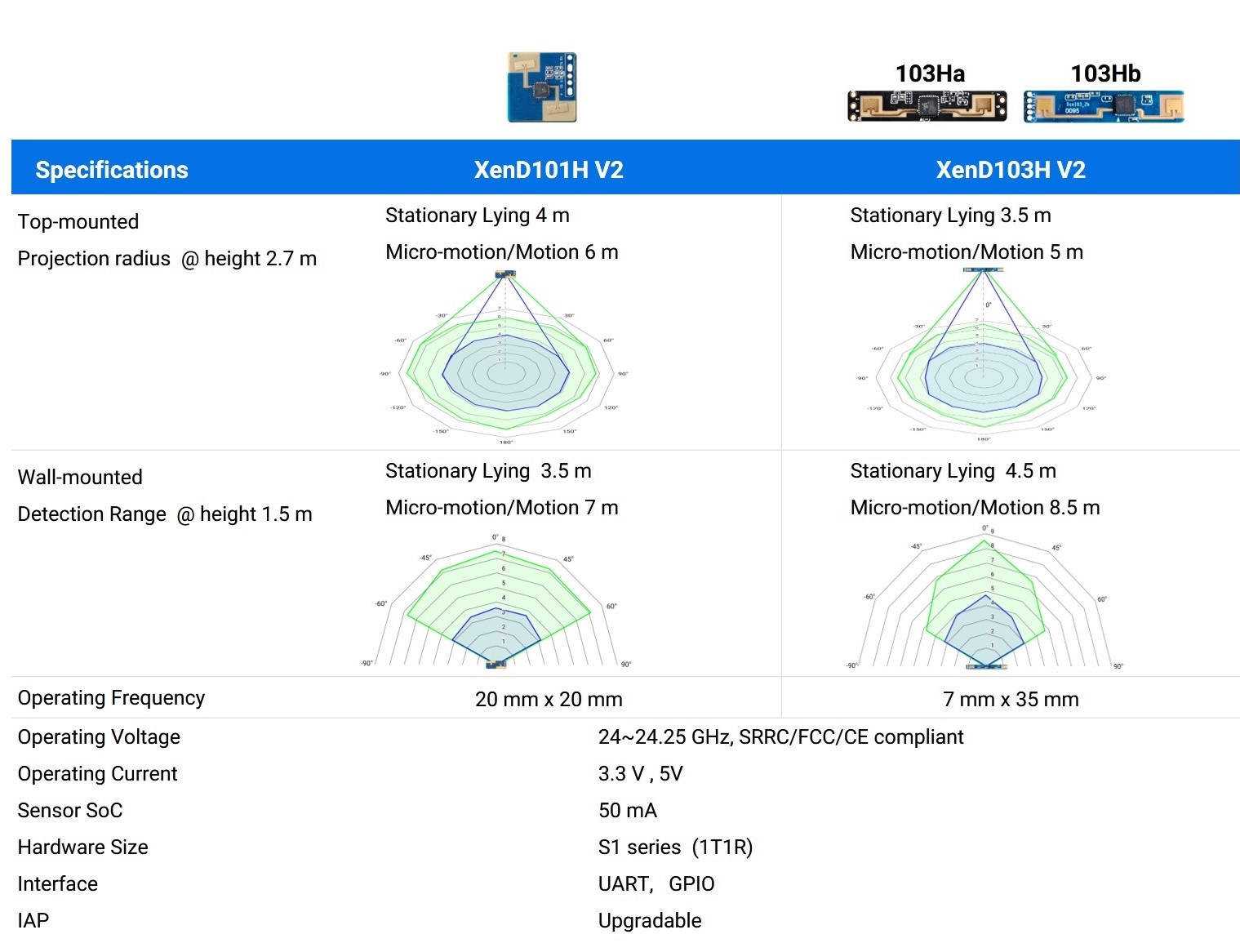

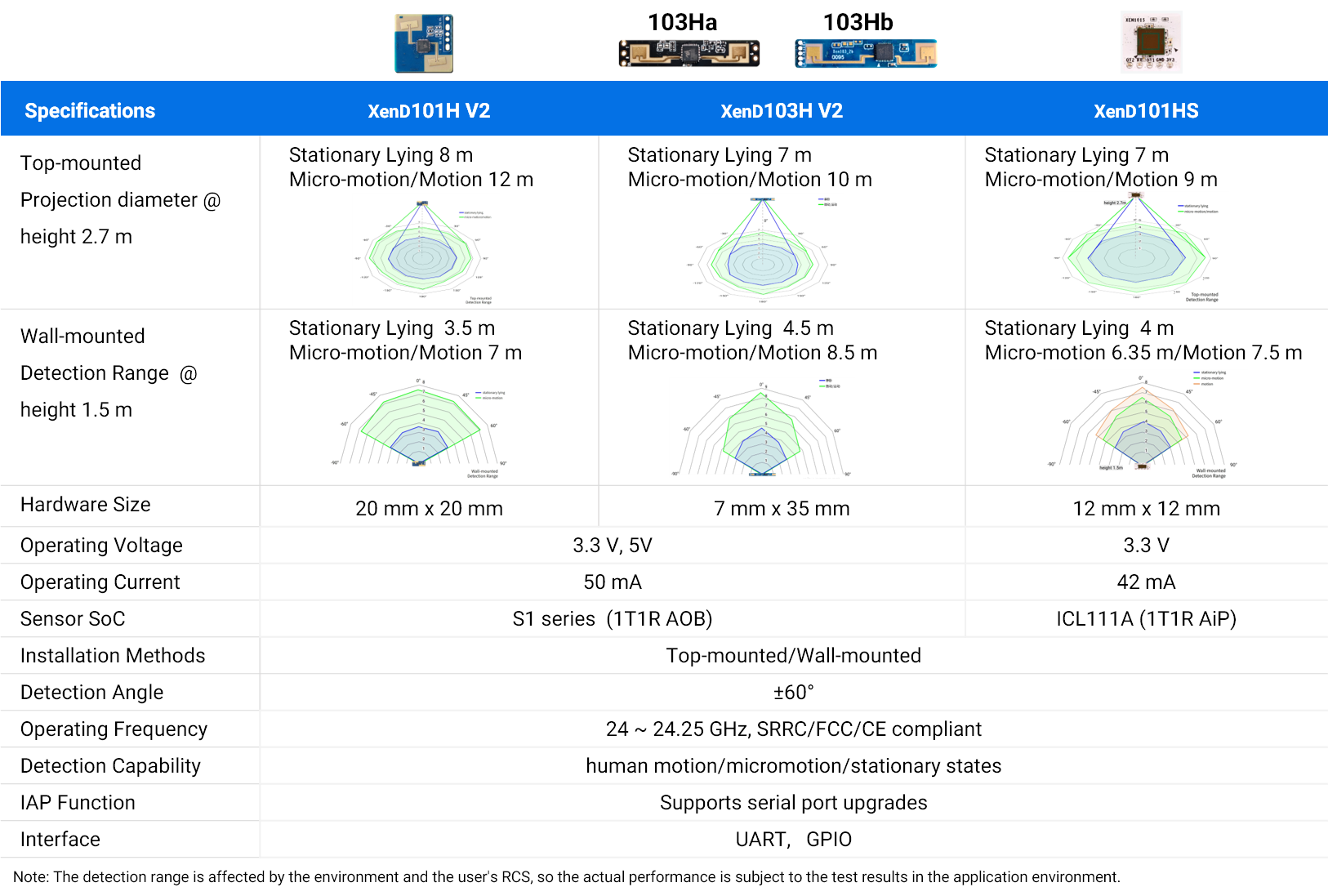

Specifications

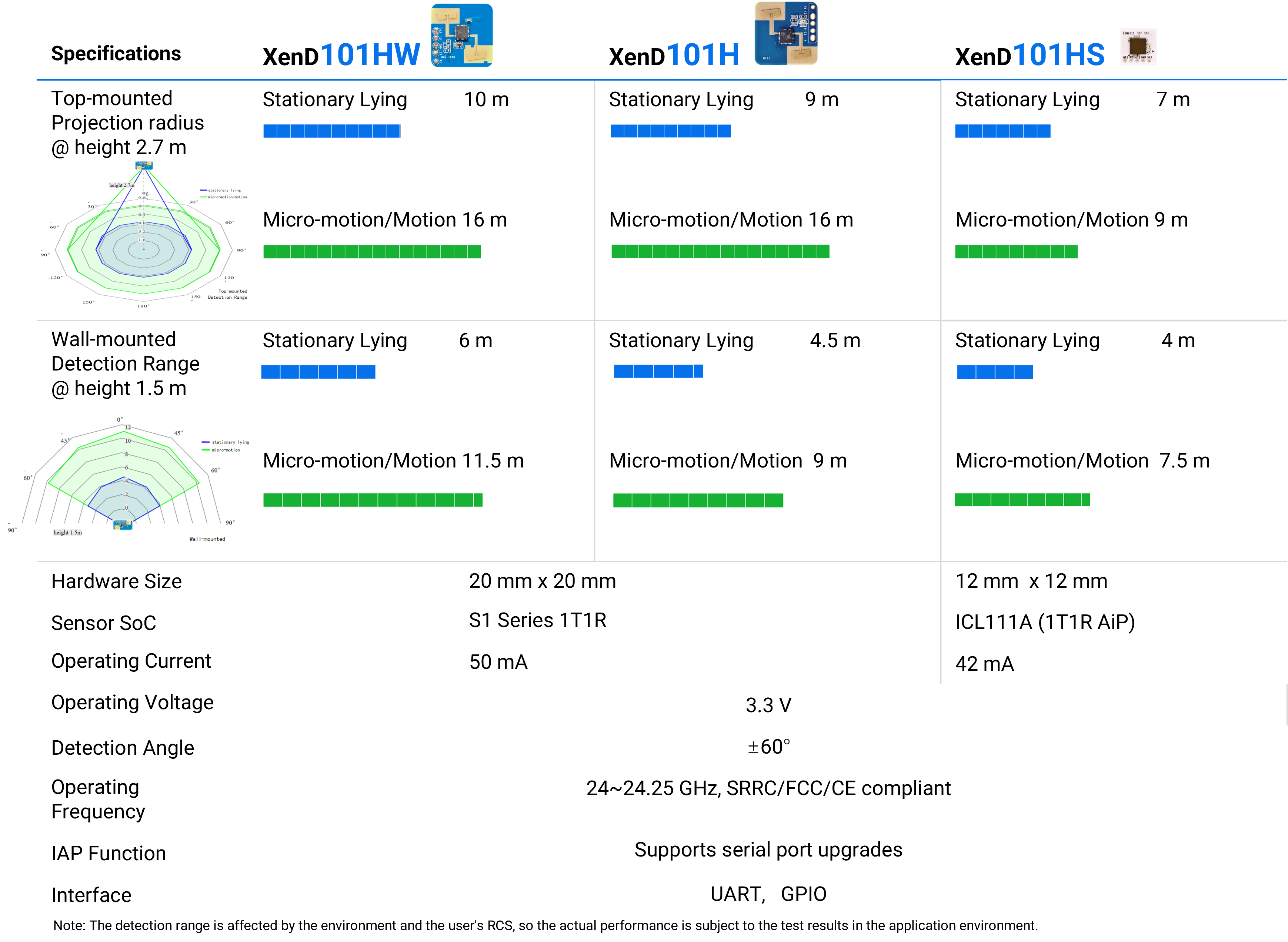

XenD101H V3 All-New Upgrade



Human Presence Detection Demonstration Tool



Applicable to Various Scenarios

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
Product Specifications_XenD101H
Product Specification Rev.4.0 223.1 KB 20260731 Sample
Application Note_mmWave Sensor Radome Design Guide
Application Note Rev.1.1 1.1 MB 20260319 Sample
User Manual_XenD101H User Manual
User Manual Rev.4.0 1.1 MB 20260731 Sample
