EVB1122 | ICL1122 SoC Evaluation Board  With High-gain Antennas

The EVB1122, equipped with the ICL1122 SoC, 1T2R multi-patch high-gain antennas, and ARM Cortex-M4 MCU, is designed to streamline the evaluation of SoC's long-range detection performance for developers. This advanced platform automatically generates SoC register configurations tailored to mmWave sensor parameter settings, simplifying the development process. It empowers developers to effortlessly craft algorithms for a wide range of applications by providing real-time data gathering and analysis capabilities. Additionally, the EVB1122 offers multiple intuitive application demonstrations, including indoor multi-human tracking and outdoor long-range (>100 m)  target tracking.



Features

Complete hardware system: Integrated 1T2R mmWave SoC, multi-patch high-gain antennas, high-performance MCU, and high-rate USB type-C interface.

Development Tool: Comprehensive SoC evaluation system, intuitive radar configuration and real-time signal waveform analysis tools.

Diverse user experience: Built-in typical application demos, i.e. indoor multi-human tracking, and outdoor long-range target tracking.



 Specifications

Operating Frequency

24 GHz

Sweeping Bandwidth

24~25 GHz (reconfigurable）

Equivalent Isotropic Radiated Power

22 dBm (reconfigurable）

Operating Voltage

5V

Sensor SoC

ICL1122(1T2R)

Hardware Size

43 mm x 41 mm

Field of View (6 dB beamwidth)

86° x 28°

IAP Function

In-application programming (IAP) using UART



Power supply and interfaces

Support UART / USB Type-C / I/O interface communication

Maximum data transfer rate 34 Mbps

Support debugging and programming via SWD

Support USB power supply (default) or external power supply via J1

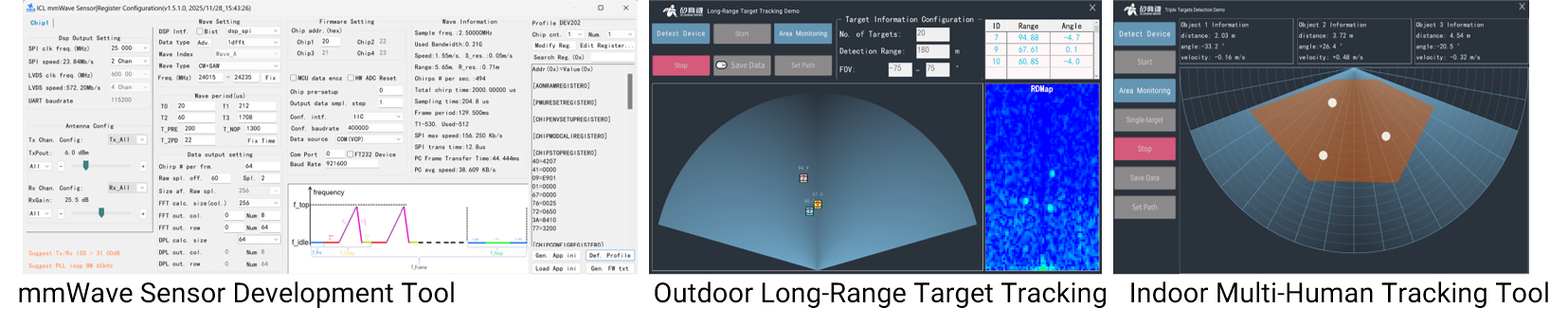

Visualization Tools

 Applicable to various scenarios

Design

Download design tools
TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
mmWave Sensor Development Tool ONELAB Development Tool 1.5.4.2 124.0 MB 20261022 View

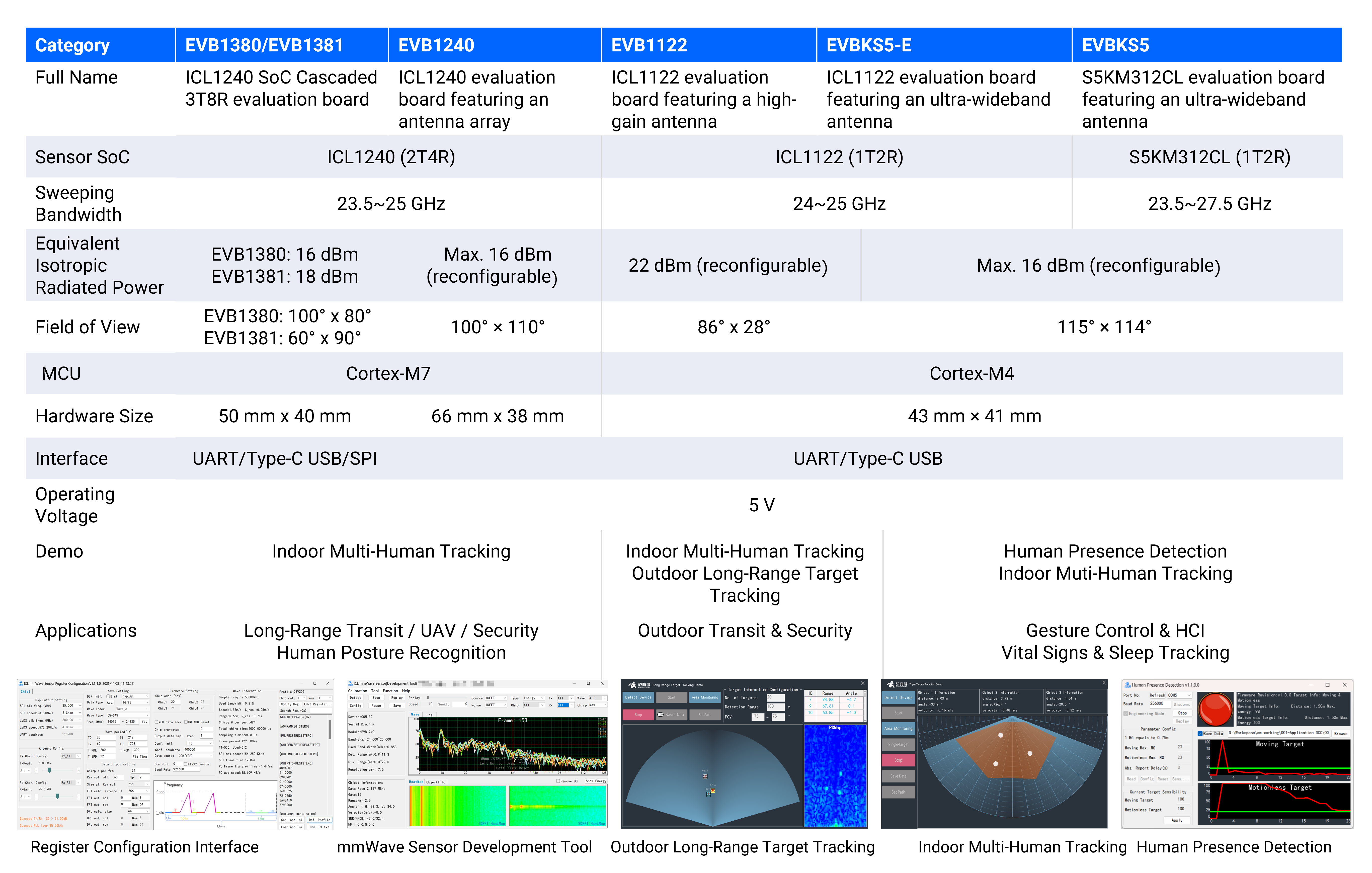

Model Selection Table

Document

TITLE CATEGORY VERSION SIZE PUBLISH TIME ACTION
ICL Product Brochure2026.10
Brochure V1.0 7.8 MB 20260714 Document
Datasheet_ICL1122
DataSheet Rev.1.5 1.7 MB 20260327 Sample
Application Note-ICL1122 Hardware Design Guide_Rev.1.0
Application Note Rev.1.0 901.8 KB 20260624 Sample
Application Note-SoC Chip ADC Saturation Detection Function Introduction
Application Note Rev.1.2 224.1 KB 20260624 Sample
Application Note-S5KM312CL_ICL1112_ICL1122_ICL111A_CW Speed Radar Reference Design Note
Application Note Rev.1.2 524.7 KB 20260624 Sample
Application Note_mmWave Sensor Radome Design Guide
Application Note Rev.1.1 1.1 MB 20260319 Sample
Application Note_SoC Temperature Detection Module_Rev.1.3
Application Note Rev.1.3 257.6 KB 20260319 Sample
Application Note_Multi-channel phase Calibration method_Rev.1.2
Application Note Rev.1.2 359.3 KB 20260624 Sample
Application Note_Tuning Methods for Maximum Available Transceiver Link Gain_Rev.1.1
Application Note Rev.1.1 731.4 KB 20260624 Sample
Application Note_ICL1112_ICL1122_ICL111A Low-Power Operation Guide_Rev.1.1
Application Note Rev.1.1 176.1 KB 20260624 Sample
User Manual_EVB1122 Evaluation Kit User Manual
User Manual Rev.1.3 1.8 MB 20261105 Sample
User Manual_mmWave Sensor Waveform Tool User Manual
User Manual Rev.1.7 4.4 MB 20261106 Sample
Schematics_EVB1122
Schematics Rev.1.2 183.8 KB 20260601 Sample
