DEV202 | 1T2R AOB

ONELAB | 24G mmWave Sensor Development Kit

Overview

ONELAB 202/202S/202H | 1T2R AOB

DEV202/202S/202H development kits are based on ICL1122 1T2R mmWave sensor SoC, offering M4 MCU High-Performance configurations.

They come in 30 mm x 7 mm / 34 mm x 15 mm / 40 mm x 15 mm layout options.

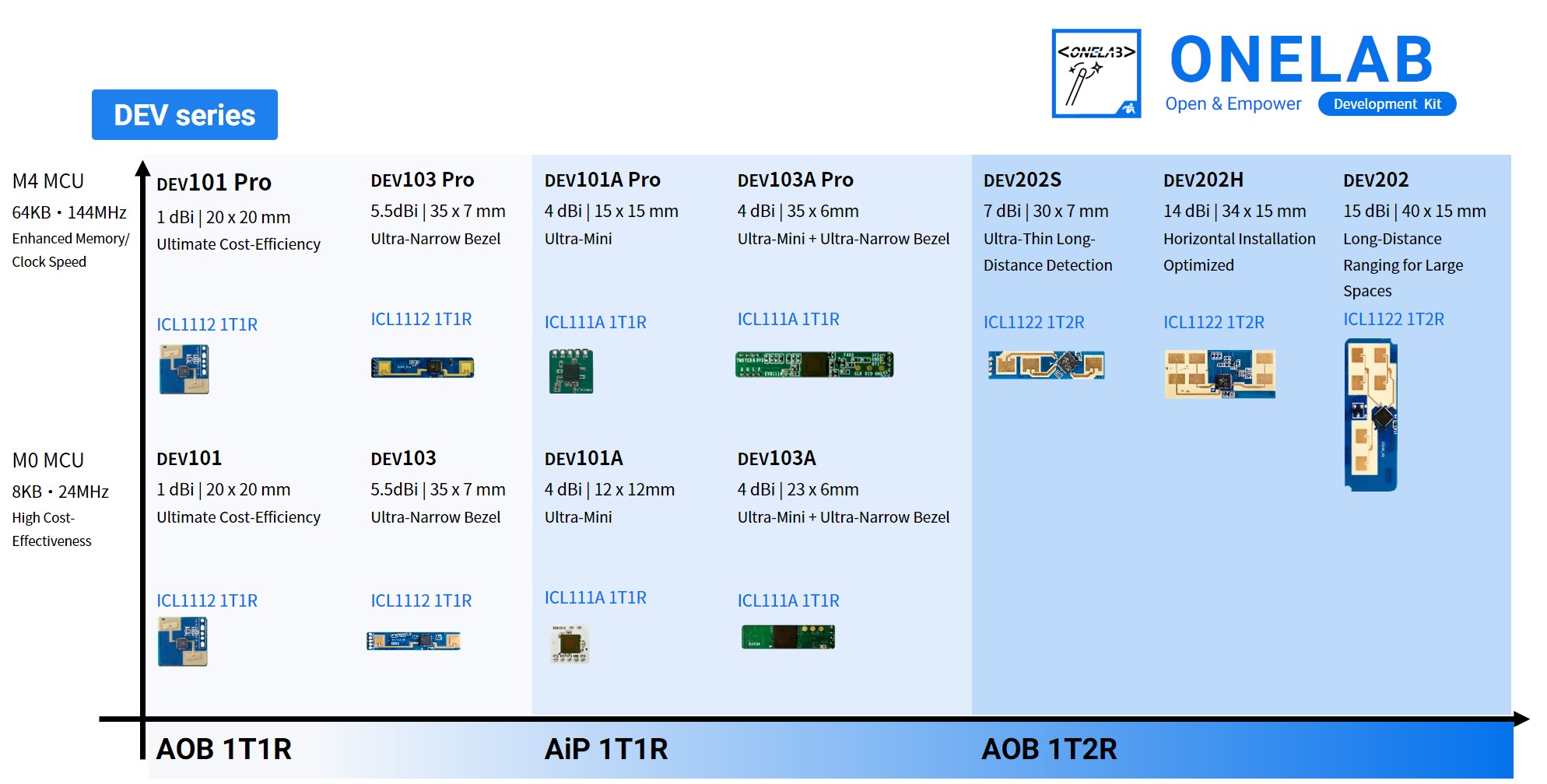

ONELAB Selection Table

Design

XenG202G | Hand Wave Gesture Recognition(2D) mmWave Sensor

Gesture Recognition Control

XenP202TE | High-Precision Multi-Person Trajectory mmWave Sensor

Multiple Trajectory Detection

XenP202TH | High-Precision Multi-Person Tracking mmWave Sensor

Multi-Person Tracking

XenP202TS | High-Precision Multi-Person Tracking mmWave Sensor

Multi-Person Tracking

title	category	version	size	last update	action

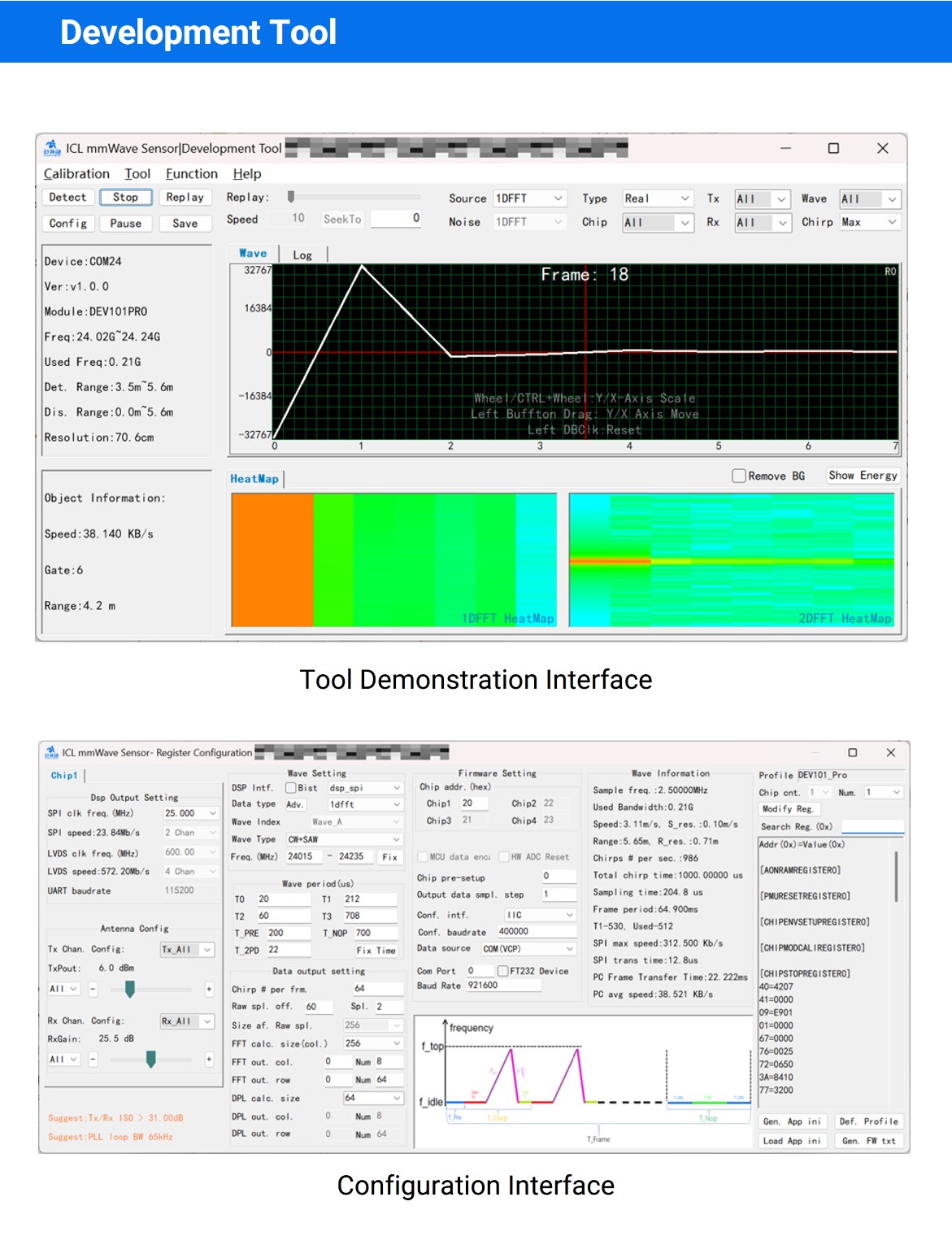

mmWave Sensor Development Tool	ONELAB Development Tool	1.5.0.0	48.1 MB	20251212	View

Document

title	category	version	size	last update	action
ICL Product Brochure2025.12 Document	Brochure	V.1.0	8.1 MB	20251208	Document
Datasheet_ICL1122 Sample	DataSheet	Rev.1.3	1.1 MB	20250306	Sample
Application Note-ICL1122 Hardware Design Guide_Rev.1.0 Sample	Application Note	Rev.1.0	1.3 MB	20251210	Sample
User Manual_ONELAB Development Kit User Manual_Rev.1.0 Sample	User Manual	Rev.1.0	4.6 MB	20251122	Sample
User Manual_mmWave Sensor Waveform Tool User Manual_Rev.1.0 Sample	User Manual	Rev.1.0	2.5 MB	20251122	Sample
